Description
The versatile Romi chassis is a great starting point for your next mobile robot. This kit includes all the basic mechanical parts to get up and running, including two motors, two wheels, one ball caster, and battery contacts. The wheels and ball are white; all other plastic components are black.
Overview

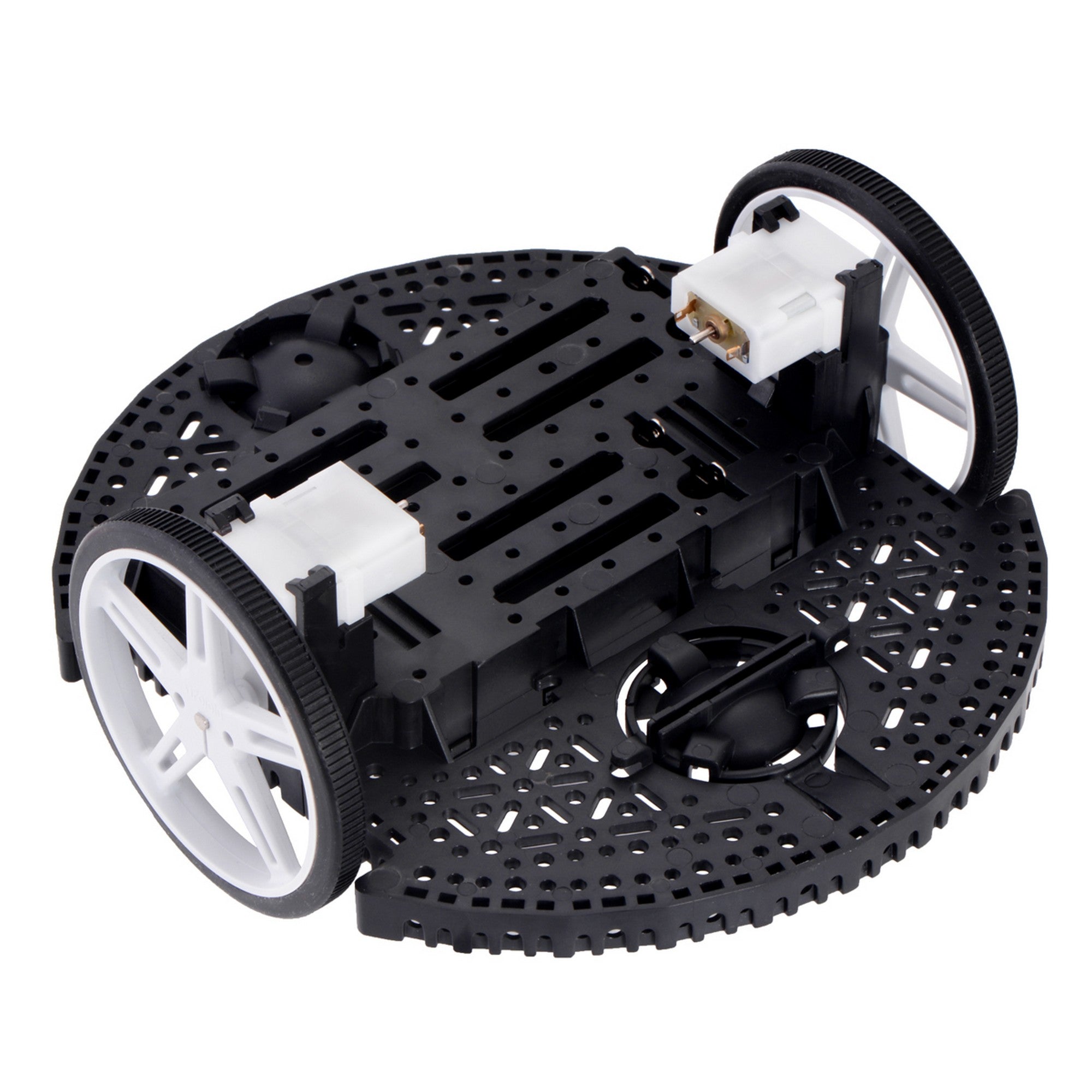

The Romi chassis is a differential-drive mobile robot platform with a diameter of 6.5″ (165 mm) and an integrated battery holder for six AA batteries (not included). The drive wheels are located on a diameter of the circular base plate, allowing for turns or spinning in place. A large, fixed ball caster in the rear provides a smooth third point of contact, and a second ball caster (not included) can optionally be added to the front. The chassis uses 70×8mm Pololu wheels and Mini Plastic Gearmotors with extended backshafts to enable quadrature encoders for position feedback.
The Romi chassis has an abundance of general-purpose mounting holes and slots intended for various sizes of screws (not included) such as #2-56, #4-40, M2, and M3. These holes can be used for mounting your electronics, such as your microcontroller, motor drivers, and sensors.
This animation shows how the parts fit together:
See the user’s guide for more complete assembly instructions.

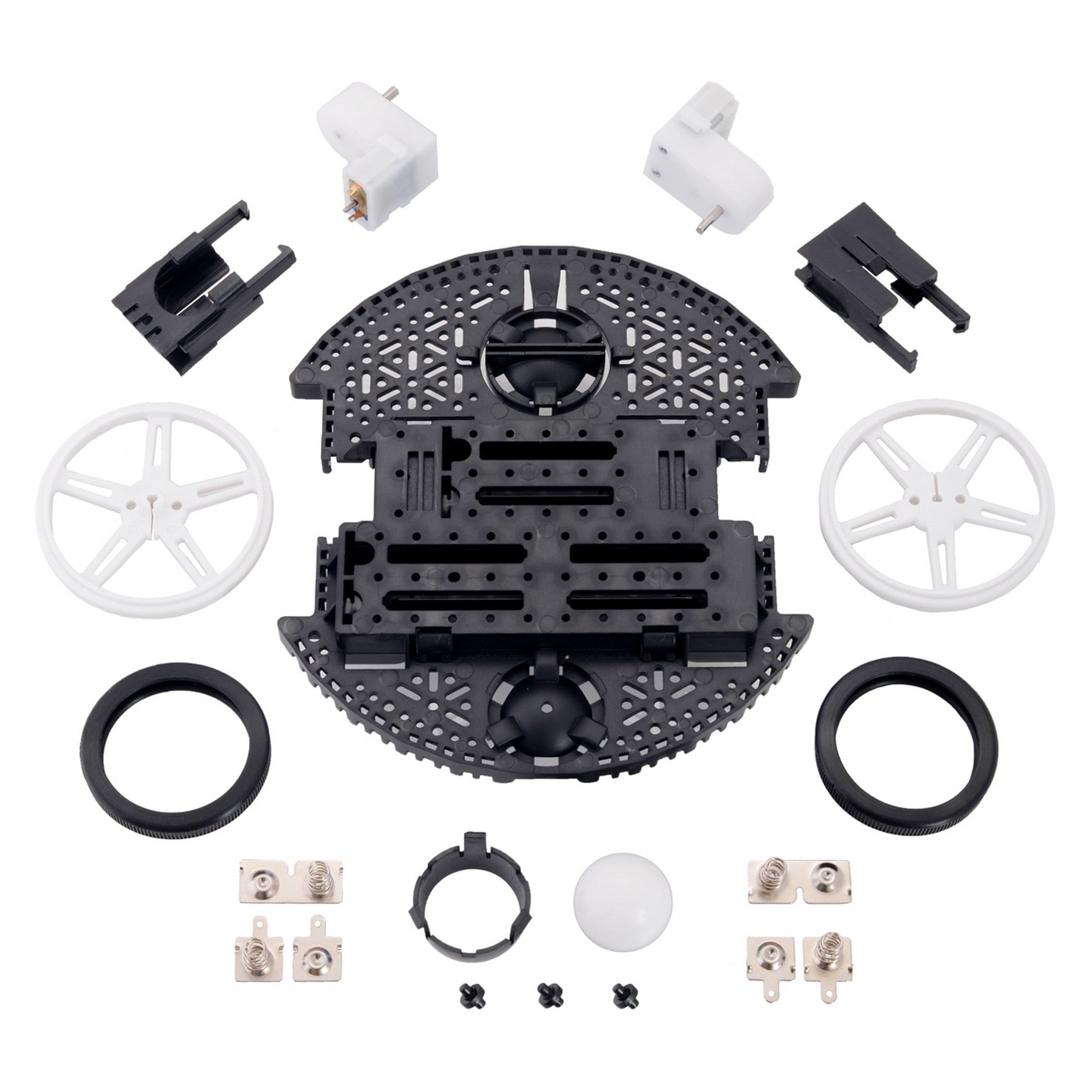

Kit contents

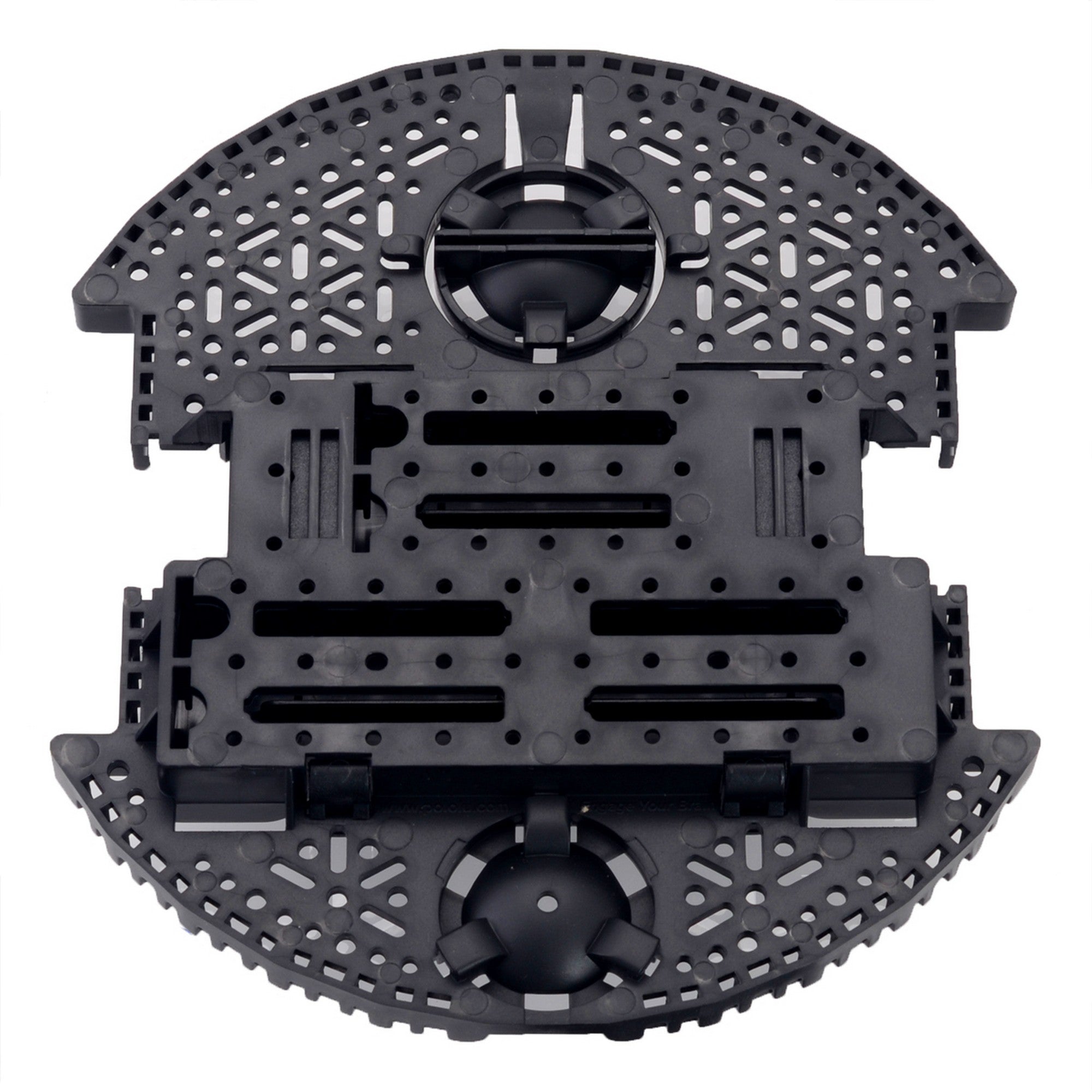

- One black Romi chassis base plate

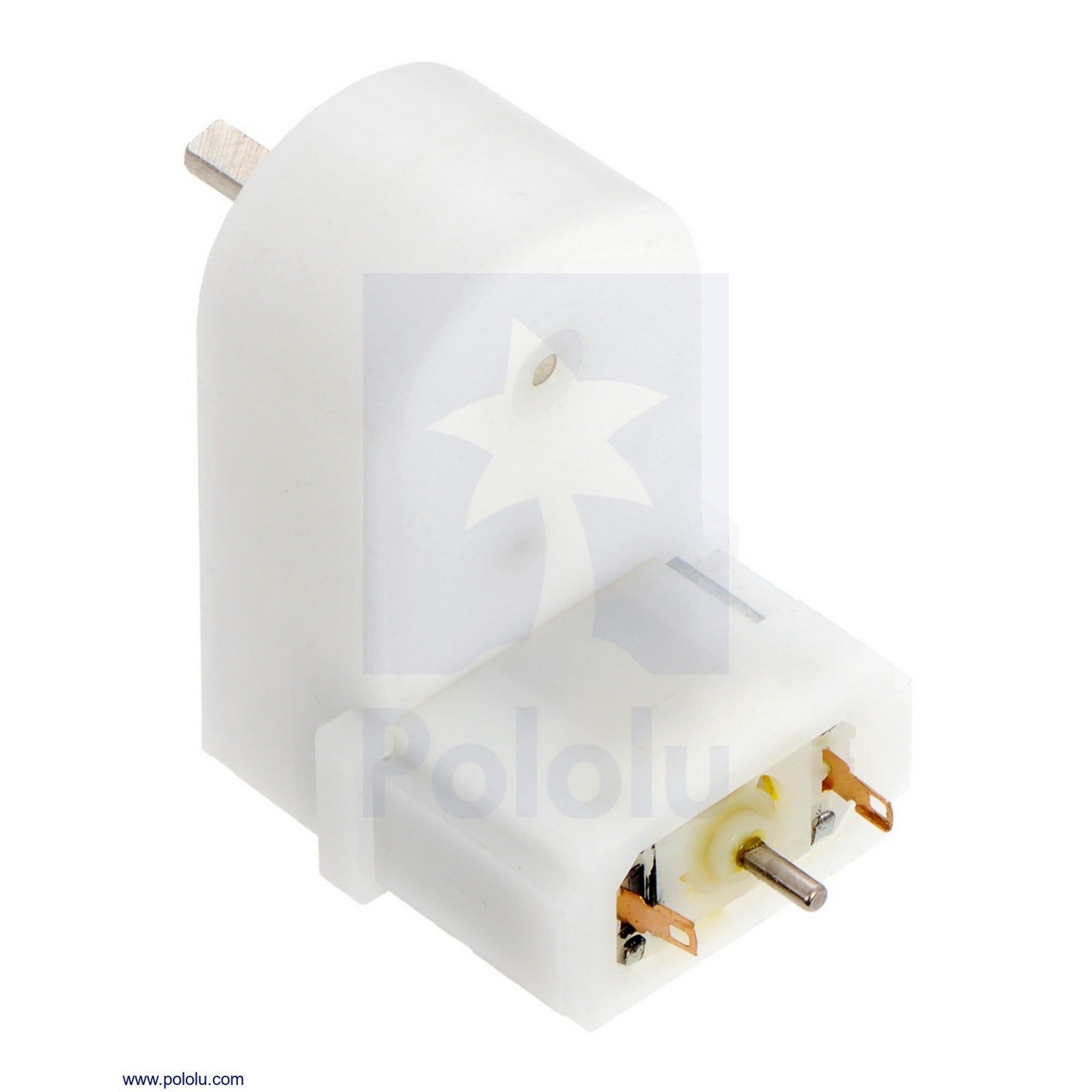

- Two mini plastic gearmotors (120:1 HP with offset output and extended motor shaft)

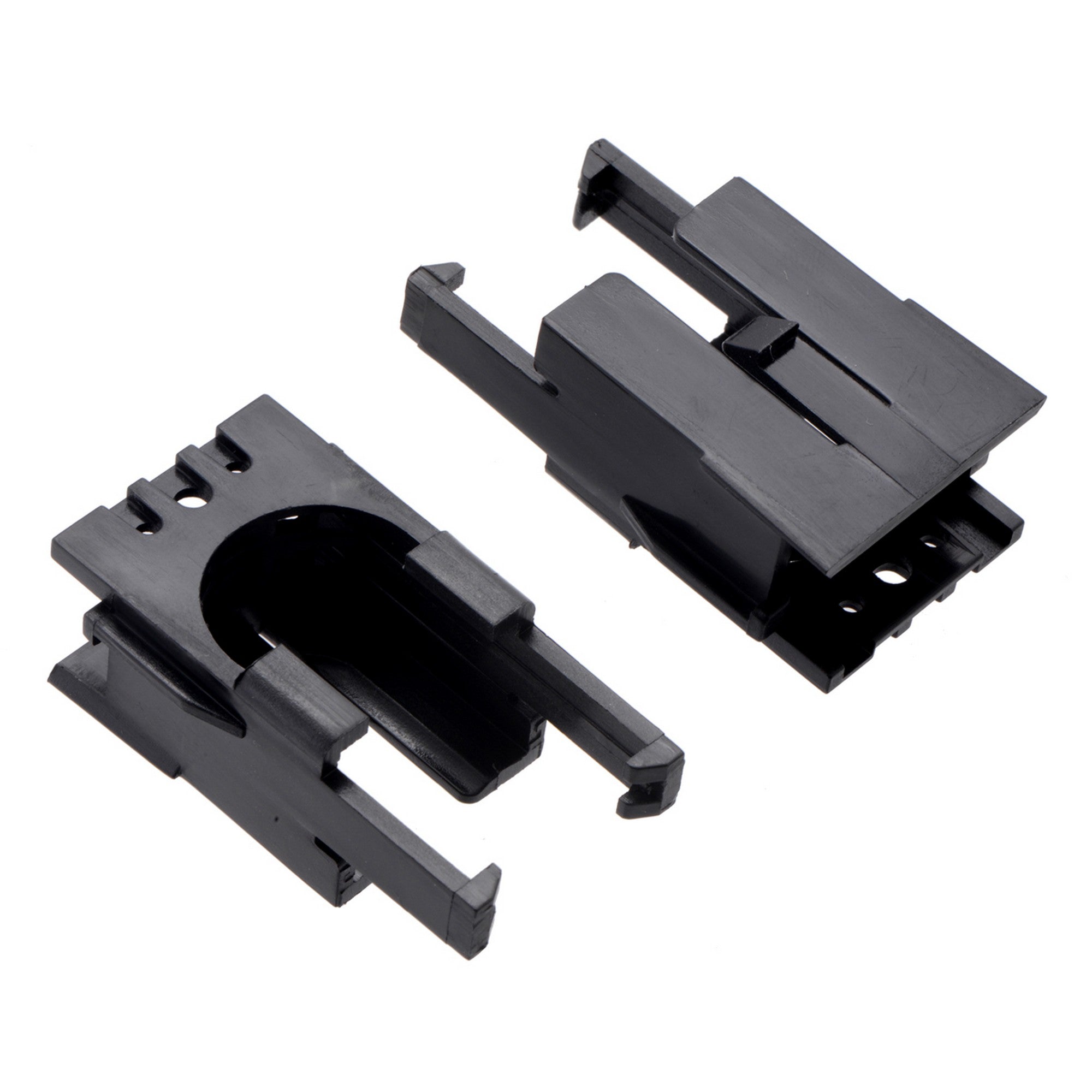

- A pair of black Romi chassis motor clips

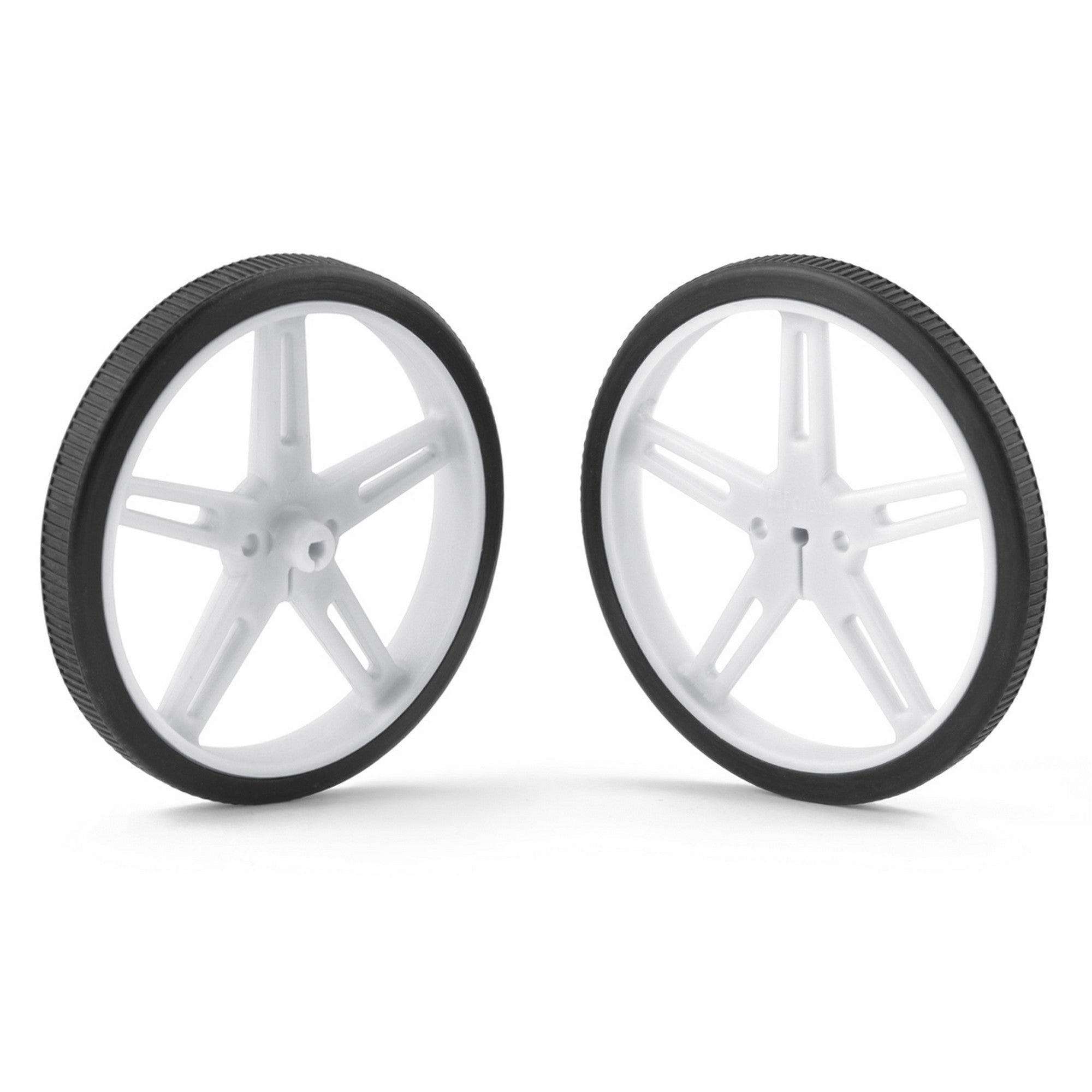

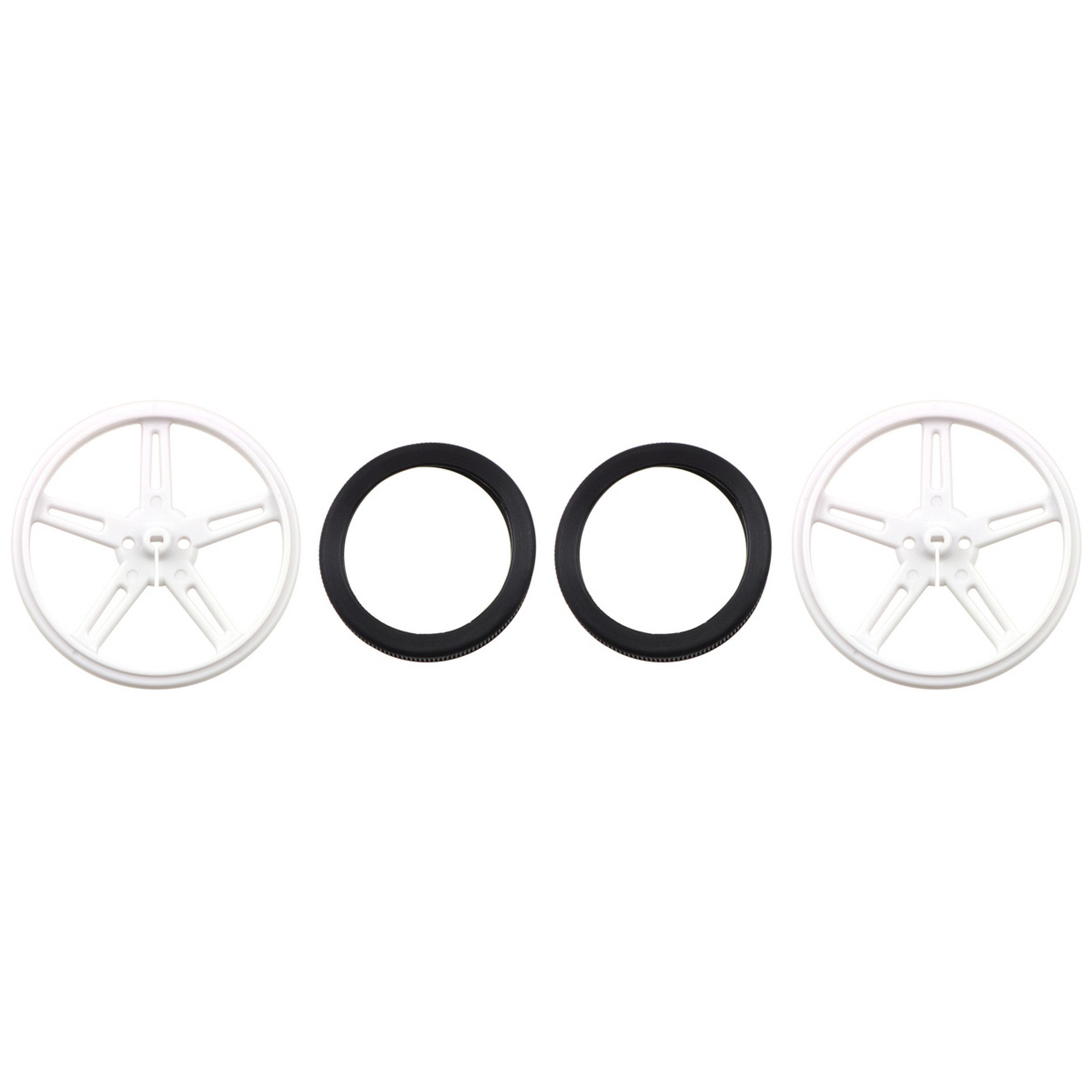

- A pair of white 70×8mm Pololu Wheels

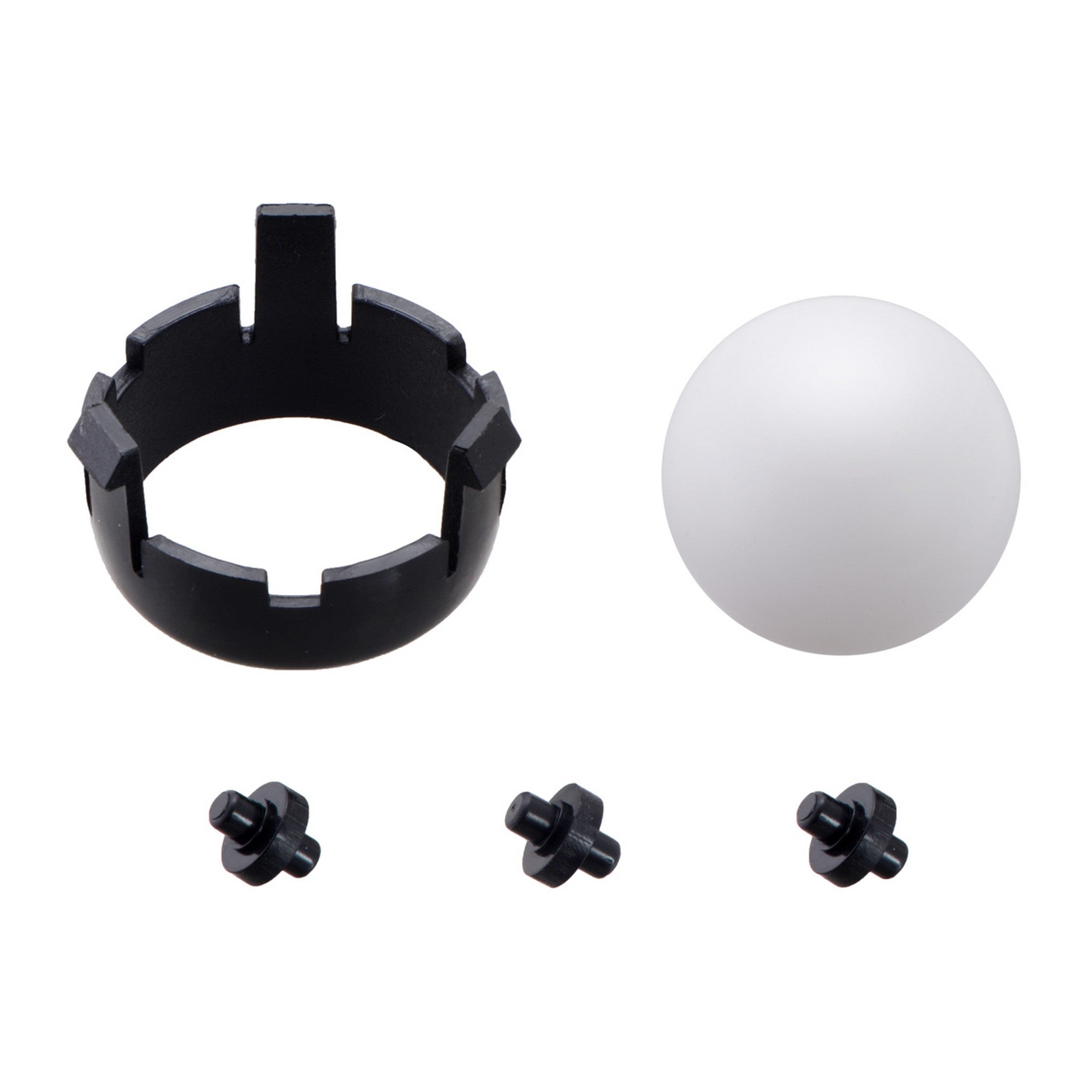

- One black Romi chassis ball caster kit

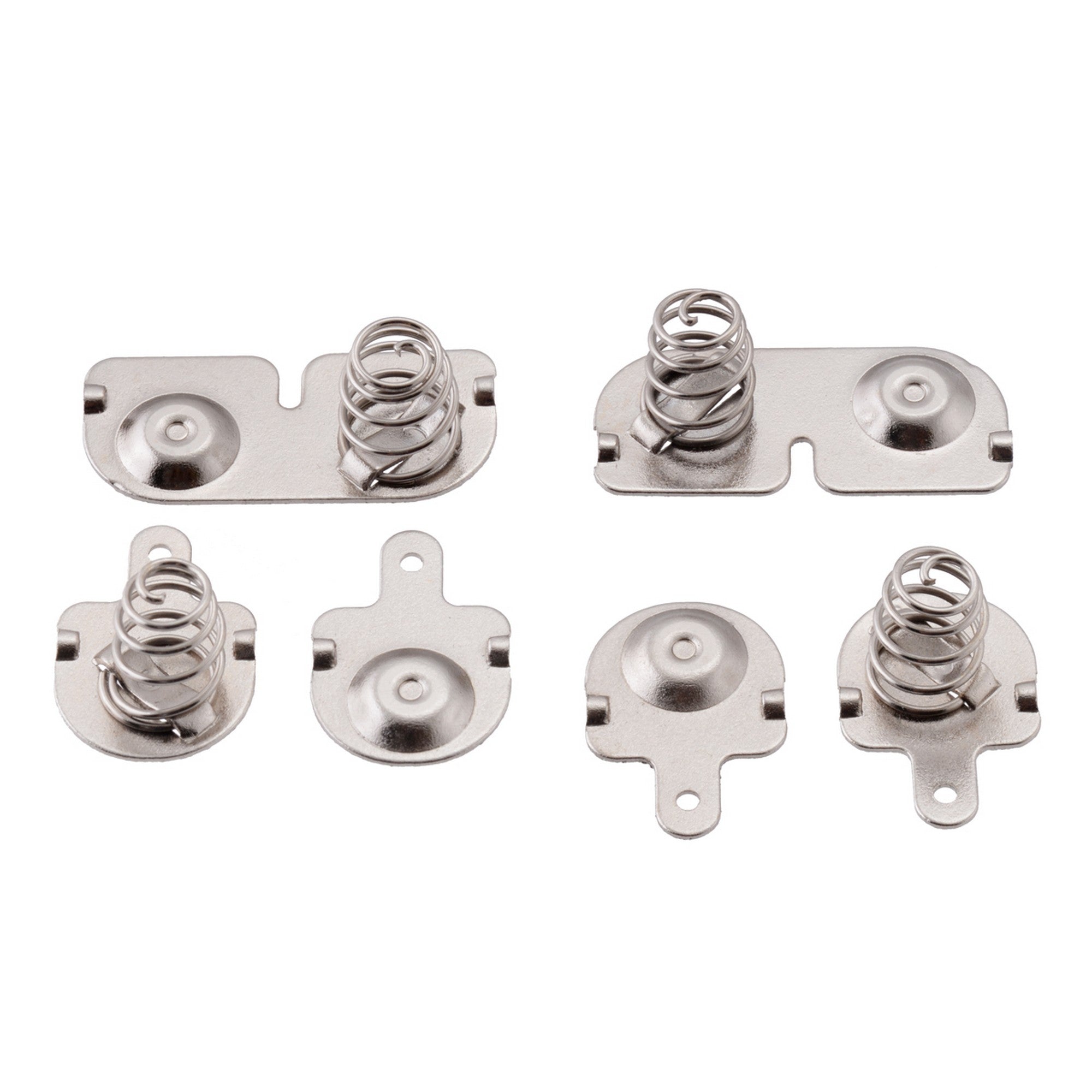

- One Romi chassis battery contact set
Additional things you will need
- Six AA batteries (we recommend rechargeable AA NiMH cells); see the user’s guide for more details about power options.
- Electronics to control the motors (e.g. the Romi 32U4 Control Board).
Resources
- Pololu Romi Chassis User’s Guide
- Romi Chassis Assembly Video
- Actual-size view of the top of the Romi Chassis : Print this page at 100% scale to get an actual-size view of the top of the Romi Chassis and all of its general-purpose mounting holes and slots.

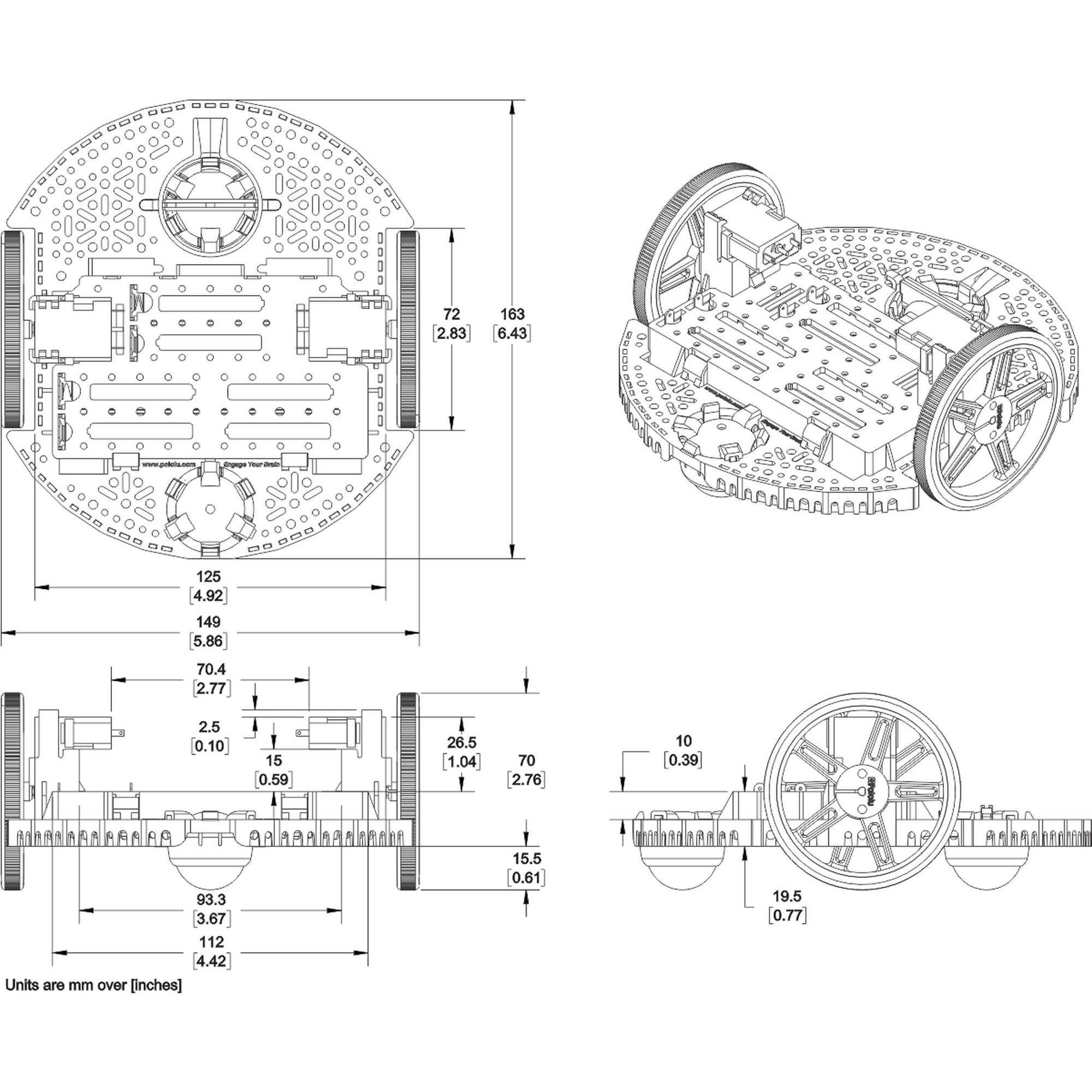

- Front, top, and side view of the Romi chassis : This dxf makes it possible to get various dimension measurements of the Romi chassis and its mounting holes.
- 3D model of the assembled Romi Chassis Kit : Note: this model includes a front ball caster that is sold separately from the Romi Chassis Kit.
