Raspberry Pi AI Camera SC1174

Raspberry PiSKU: SEN065

Price:
Sale priceS$129.90
Stock:
Only 5 units left

Description

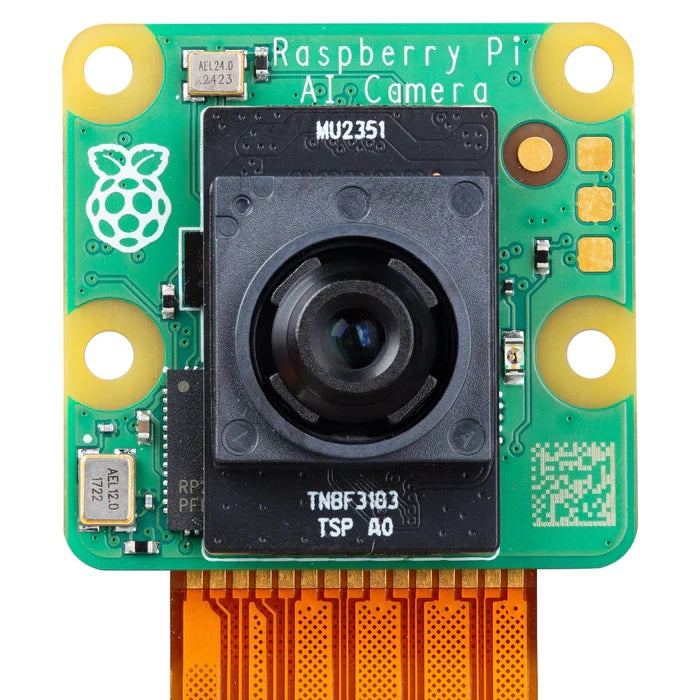

The Raspberry Pi AI Camera is a compact camera module from Raspberry Pi, based on the Sony IMX500 Intelligent Vision Sensor.

The IMX500 combines a 12-megapixel CMOS image sensor with on-board inferencing acceleration for a variety of common neural network models, enabling users to develop sophisticated vision-based AI applications without the need for a separate accelerator.

The AI Camera transparently augments captured still images or video with tensor metadata, leaving the processor in the host Raspberry Pi free to perform other operations. Support for tensor metadata in the libcamera and Picamera2 libraries, and in the rpicam-apps application suite, make it easy for beginners to use, while offering advanced users unparallelled power and flexibility.

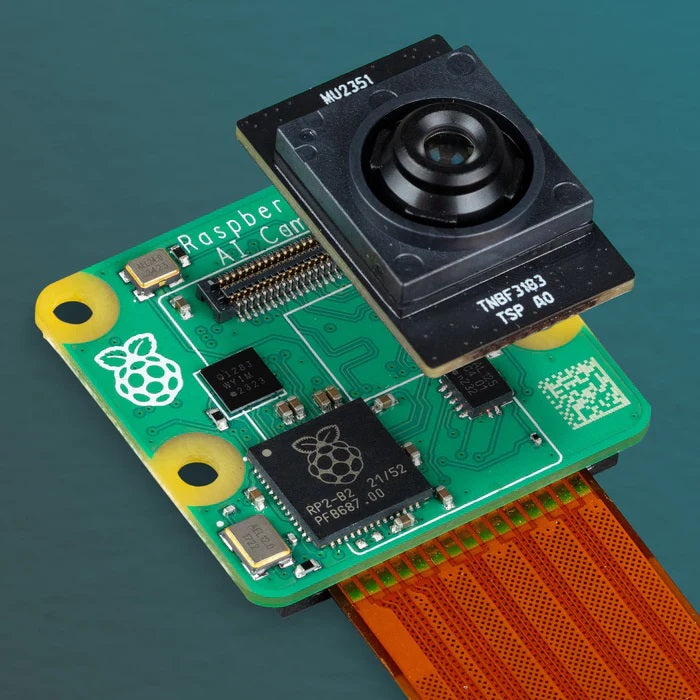

The Raspberry Pi AI Camera is compatible with all Raspberry Pi computers. The PCB outline and mounting hole locations are identical to those of Raspberry Pi Camera Module 3, while the overall depth is greater to accommodate the larger IMX500 sensor and optical subassembly.

The camera comes with two cables (15-pin and 22-pin) allowing you to use this with all Raspberry Pi computers which feature a CSI port, including the Raspberry Pi 5.



Demo Videos

Object Detection:

Pose Estimation:

Features

  • 12MP Sony IMX500 Intelligent Vision Sensor
  • Integrated low-power inference engine
  • Integrated RP2040 for neural network and firmware management
  • Pre-loaded with MobileNet machine vision model
  • Sensor modes: 4056×3040 at 10fps, 2028×1520 at 30fps
  • 76-degree field of view
  • Manually adjustable focus
  • Supplied with 200mm cables for connection to all Raspberry Pi computers
  • MPN: Raspberry Pi SC1174
  • EAN: 5056561803890



Specification

  • Sensor: Sony IMX500
  • Resolution: 12.3 megapixels
  • Sensor size: 7.857 mm (type 1/2.3)
  • Pixel size: 1.55 μm × 1.55 μm
  • Horizontal/vertical: 4056 × 3040 pixels
  • IR cut filter: Integrated
  • Autofocus system: Manual adjustable focus
  • Focus range: 20 cm – ∞
  • Focal length: 4.74 mm
  • Horizontal field of view: 66 ±3 degrees
  • Vertical field of view: 52.3 ±3 degrees
  • Focal ratio (F-stop): F1.79
  • Infrared sensitive: No
  • Output: Image (Bayer RAW10), ISP output (YUV/RGB), ROI,
    metadata
  • Input tensor maximum size: 640(H) × 640(V)
  • Input data type: 'int8' or 'uint8'
  • Memory size: 8388480 bytes for firmware, network weight file,
    and working memory
  • Framerate: 2×2 binned: 2028×1520 10-bit 30fps
  • Full resolution: 4056×3040 10-bit 10fps

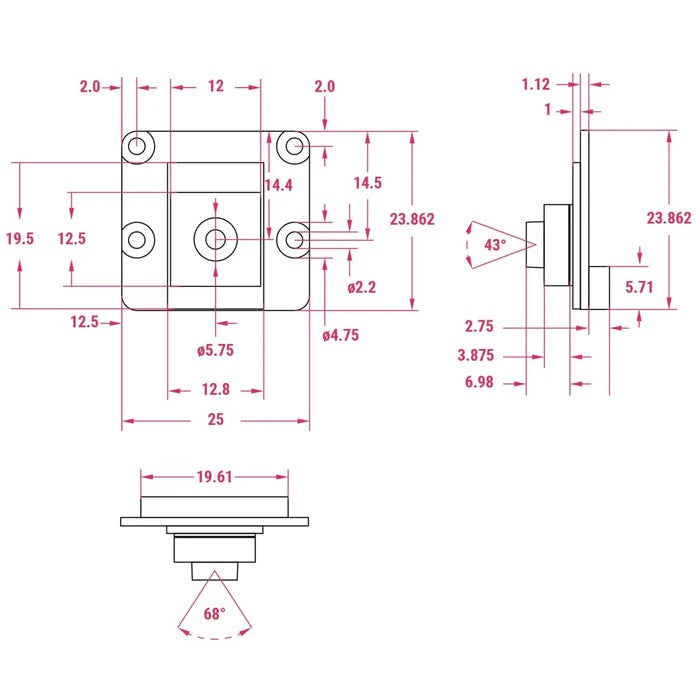

  • Dimensions: 25 × 24 × 11.9 mm
  • Ribbon cable length: 200 mm
  • Cable connector: 15 × 1 mm FPC or 22 × 0.5 mm FPC
  • Operating temperature: 0°C to 50°C
  • Compliance: For a full list of local and regional product approvals,
    please visit pip.raspberrypi.com
  • Production lifetime: The Raspberry Pi AI Camera will remain in production until
    at least January 2028



Includes

  • 1x Raspberry Pi AI Camera
  • 1x CSI cable (15-pin for Pi 2/3/4)
  • 1x CSI cable (22-pin for Pi Zero/Pi 5)
  • 1x Lens adjustment tool
