Description

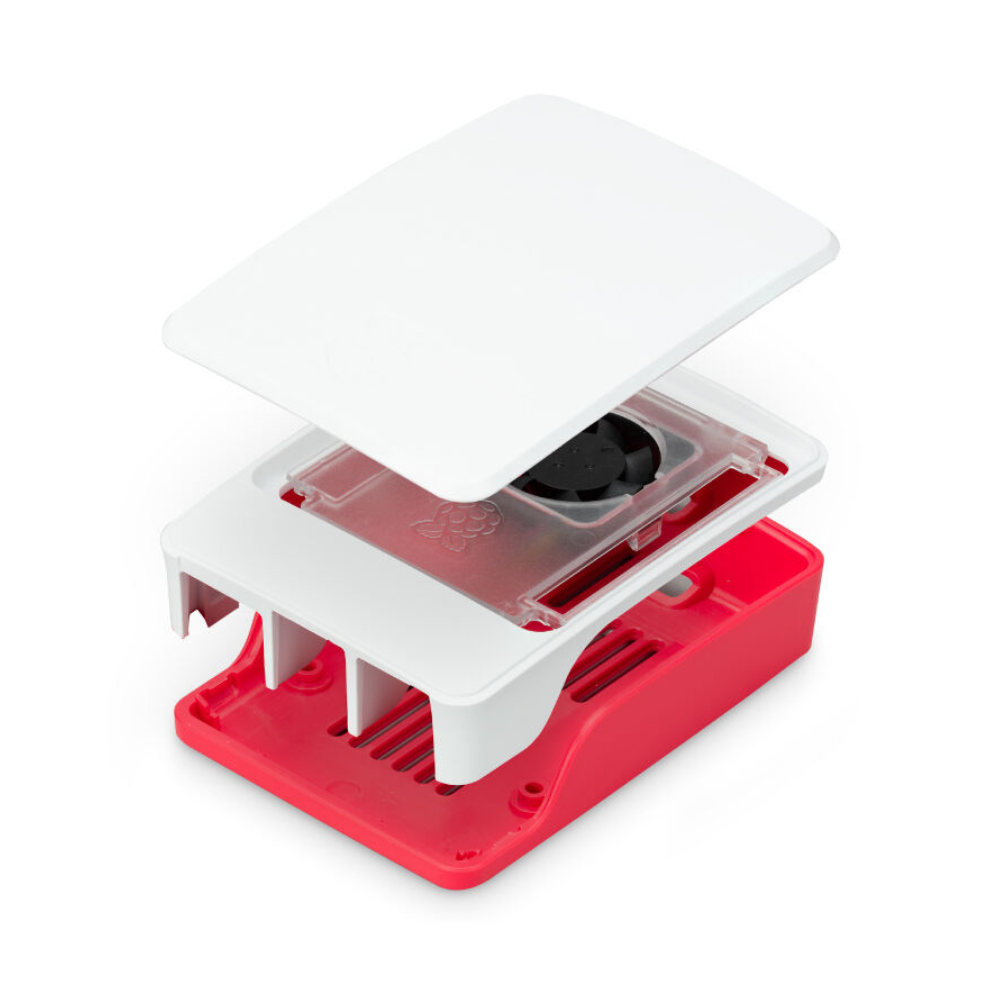

The Raspberry Pi Case for Raspberry Pi 5 is a clip-together four-part enclosure with an active cooling fan. It keeps your Raspberry Pi 5 at a comfortable operating temperature even under heavy load.
Following the same easy-to-assemble snap-together design of the Raspberry Pi 4 case, the case now includes an internal PWM fan for use with the dedicated fan connector on the Raspberry Pi 5. A heatsink is included. Vents in the base, as well as a slim gap below the lid, also ensure airflow is unrestricted. This combination of active and passive thermal measures ensures your board stays cool even with the most demanding projects

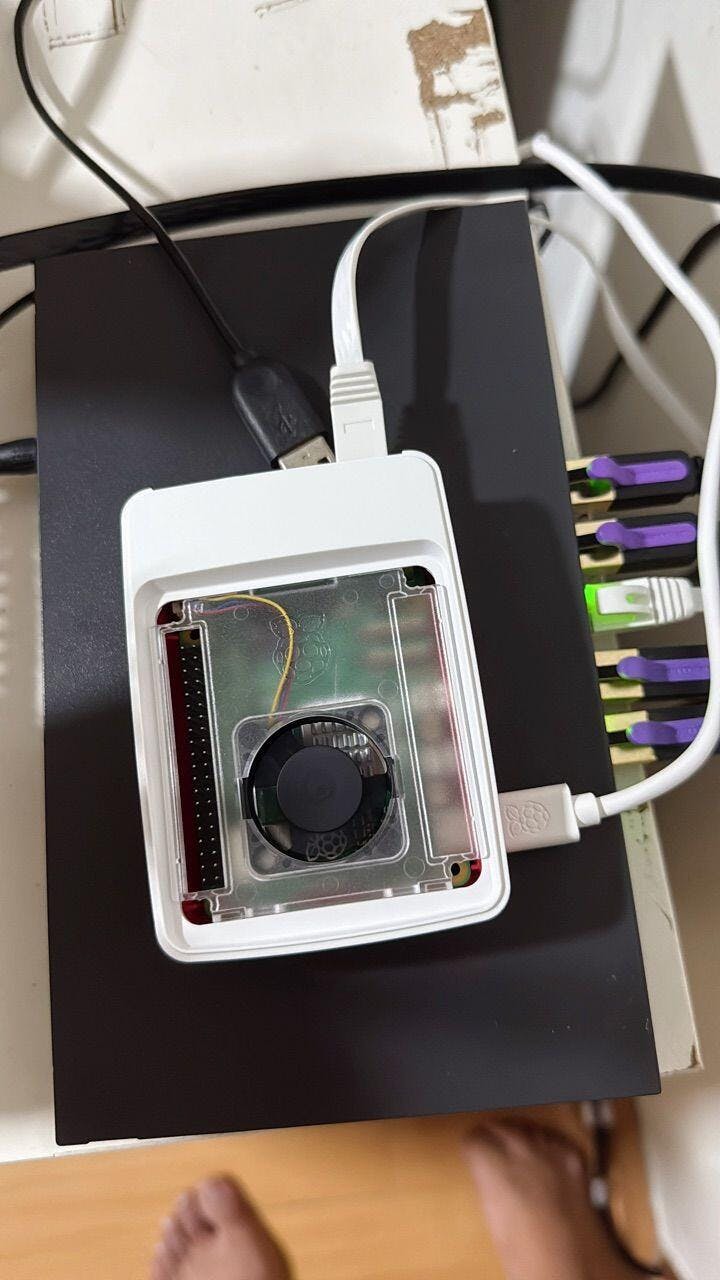

Pop the lid off and you'll find the removable clear fan insert, which includes cut-outs to access your GPIO pins as well as corner slots to attach standoffs. With the clear insert removed, you can fit HATs perfectly into the gap, allowing you to expand the use of your Raspberry Pi 5 without removing the protection that the case offers.
The new power button on the Raspberry Pi 5 is accessible with a clever clear 2-in-1 button and activity LED button. An access section has been added for swapping out your Micro-SD card, whilst soft feet ensure your projects stay put on your desk whilst avoiding damage to the surface.
Features
- The official Raspberry Pi 5 case
- Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
- 12mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor
- Easily removable lid exposes fan and breakout slot for cables and GPIO
- Integrated mounting features allow for case stacking
- HATs can be mounted to the enclosure with stand-offs and GPIO header extenders (not included)
- Four silicone feet for the case are included
Specification
- Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
- Fan speed control: Pulse width modulation control with tachometer
- Maximum airflow: 2.79 CFM
- Maximum fan speed: 8000 RPM +/- 15%
- Case material: ABS (base, frame, lid) and PC (fan assembly)
- Manufacturer SKU: SC1159
Resources
Compliance
View and download relevant certificates and conformity documents.
If you require any further information regarding compliance, please contact compliance@raspberrypi.com.
Obsolescence Statement
Raspberry Pi Case for Raspberry Pi 5 will remain in production until at least January 2035
