Description

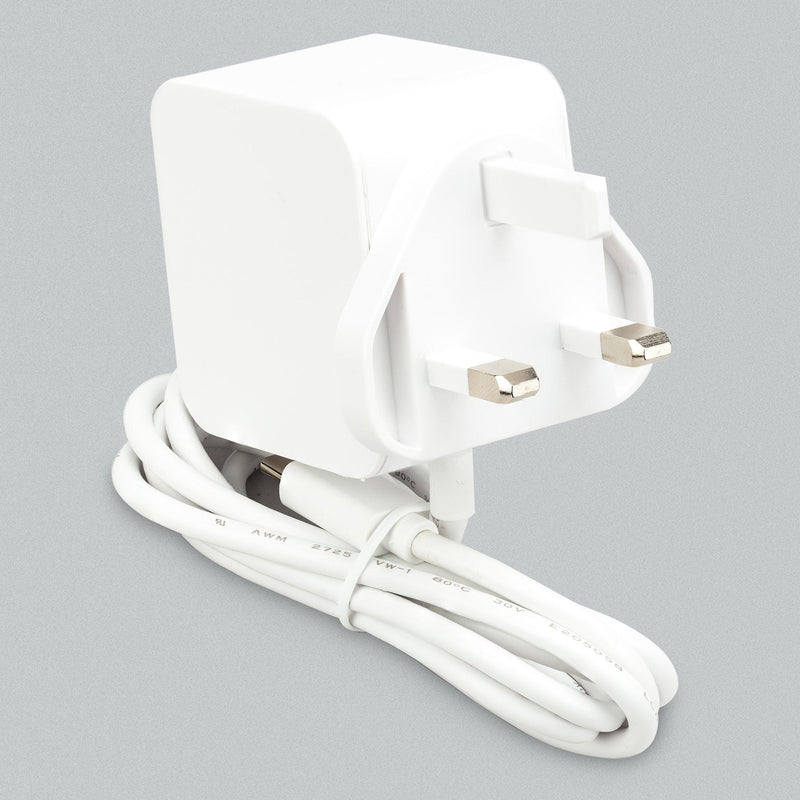

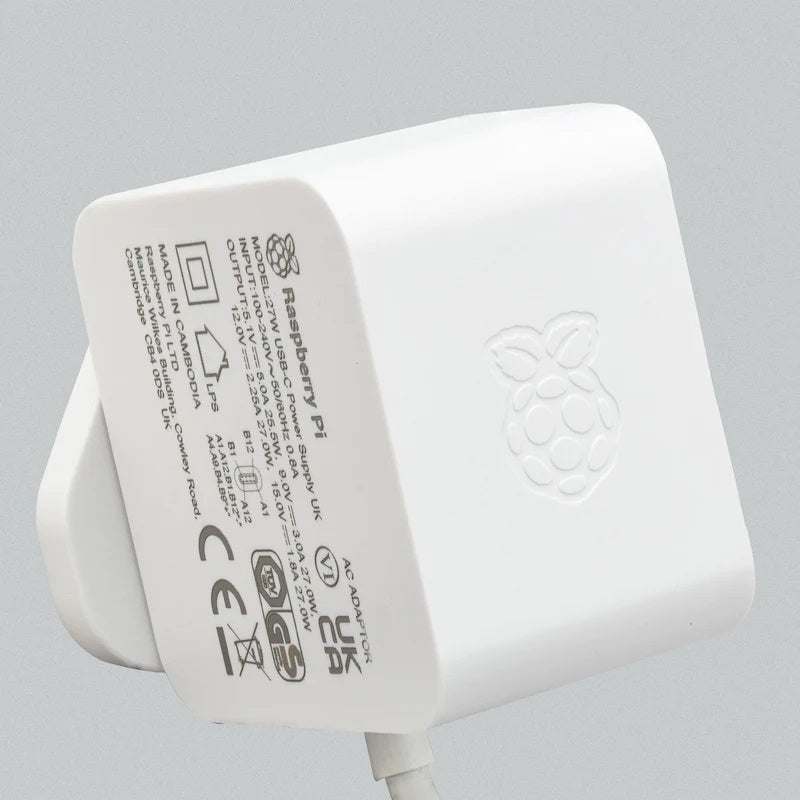

The Raspberry Pi 27W USB-C Power Supply is a high-quality PD (Power Delivery) power supply for a range of PD-enabled USB-C devices, including (and recommended for) the Raspberry Pi 5!
This high-efficiency (>91%) 27W power supply offers standard PD modes including 5V/3A, 9V/3A, 12V/2.25A and 15V/1.8A, alongside a custom mode for the Raspberry Pi 5, offering 5V/5A.
The range of PD voltage options makes it a great PSU for the home - use it with all of your compatible PD devices including phones, laptops and more! As with all PD devices, your device will communicate with the power supply and select the required voltage.
When used with the Raspberry Pi 5, this power supply will provide 5V/5A and enable you to use the board to its full potential and performance, ensuring a full possible current supply to USB devices.
The 27W PSU uses high-quality capacitors to ensure a stable and reliable source of power (Rubycon high-voltage, Panasonic low-voltage).
Features
- Compatible with PD (Power Delivery) devices
- Standard PD modes: 5V/3A, 9V/3A, 12V/2.25A and 15V/1.8A
- Custom mode for Raspberry Pi 5: 5V/5A
- Supports the Raspberry Pi 5
- Supports Power Delivery of RPI 5 though its usb ports, ideal for hard drives, SSDs
- Able to increase the USB current limit of RPI 5 board automatically from the default 600mA to 1.6A
Specification
- Input: 100 – 240Vac
- Output: 5A @ 5.1V , 3A @ 9V , 2.25A @ 12V, 1.8A @ 15V (Power Delivery)
- Connector: USB-C
- Cable: 1.2m 17AWG, white
- Plug Type: UK/SG (Type G)
- Manufacturer SKU: SC1149
Resources
Compliance
The Raspberry Pi 27W USB-C Power Supply has undergone extensive compliance testing and meets a number of regional and international standards.
View and download relevant certificates and conformity documents.
Obsolescence Statement
Raspberry Pi 27W USB-C Power Supply will remain in production until at least January 2035
