Description
✓ High Strength & Stiffness
✓ High Heat Resistance
✓ Strong Layer Adhesion
✓ Chemical Resistant
✓ Ready to Print

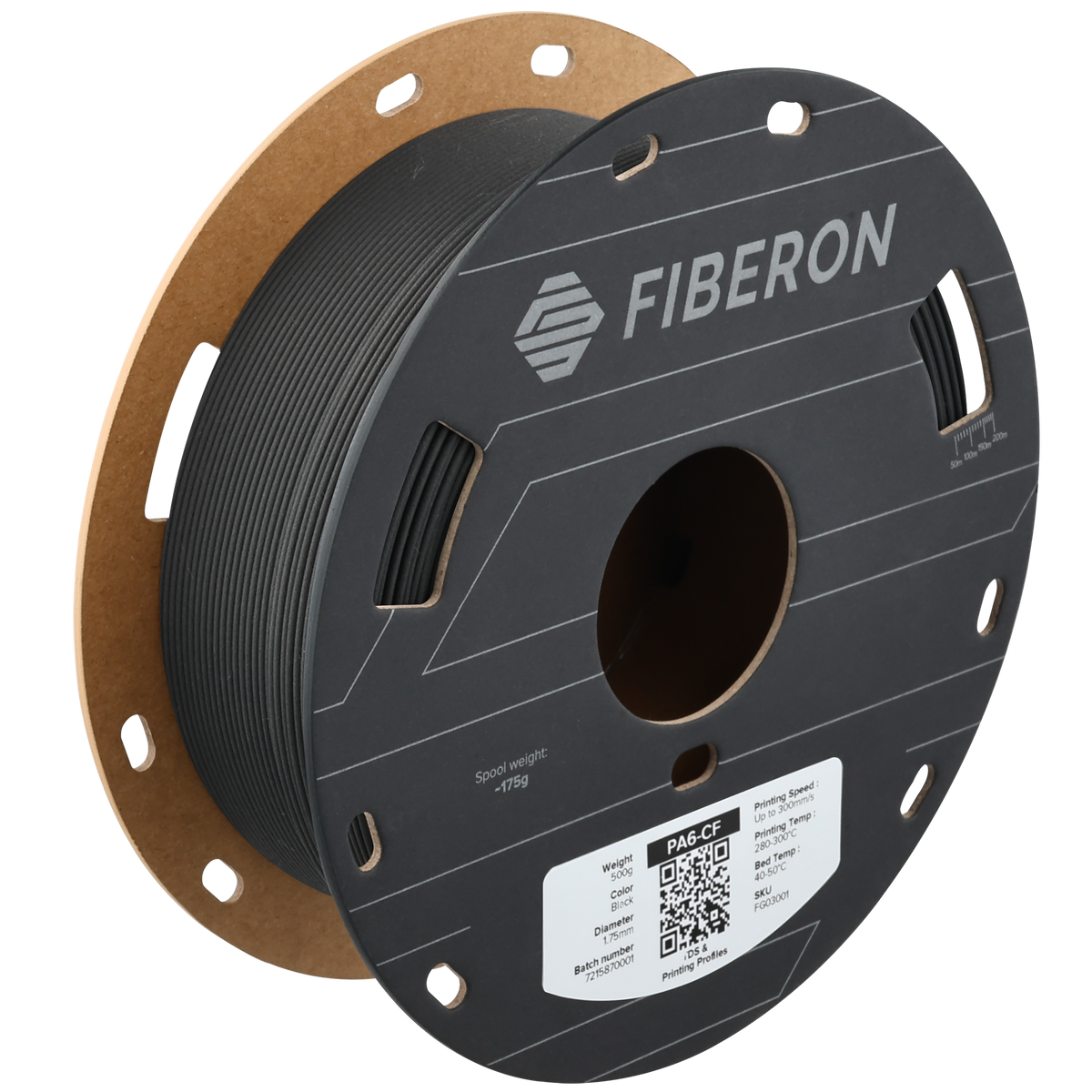

Fiberon™ PA6-CF20: High-Strength Carbon Fiber Reinforced Nylon 6 Filament (Formerly PolyMide™ PA6-CF)
Engineered for Demanding Applications
Fiberon™ PA6-CF20 is a carbon fiber reinforced PA6 (Nylon 6) filament containing 20% carbon fiber, designed for exceptional mechanical strength, stiffness, and heat resistance. The carbon fiber reinforcement dramatically improves rigidity and dimensional stability, making it ideal for functional prototypes, industrial tooling, automotive, and composite manufacturing applications.
Outstanding Performance Features

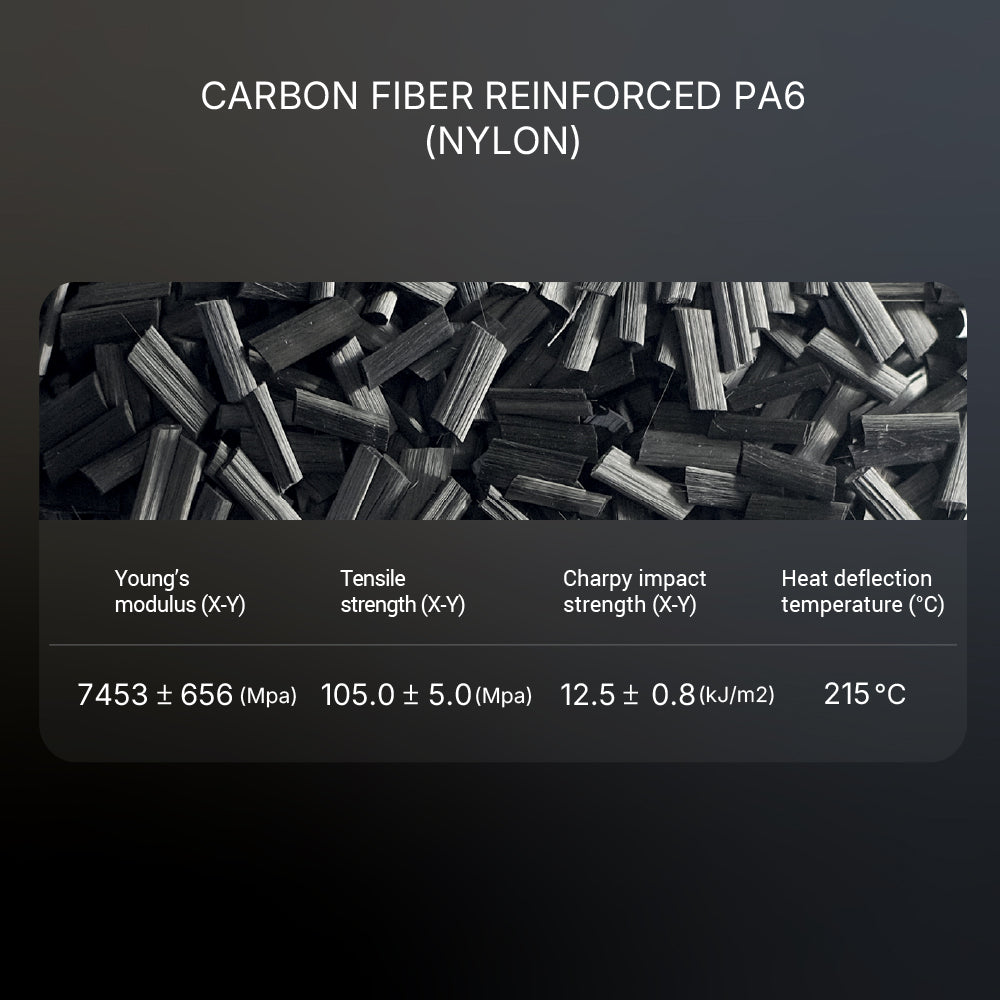

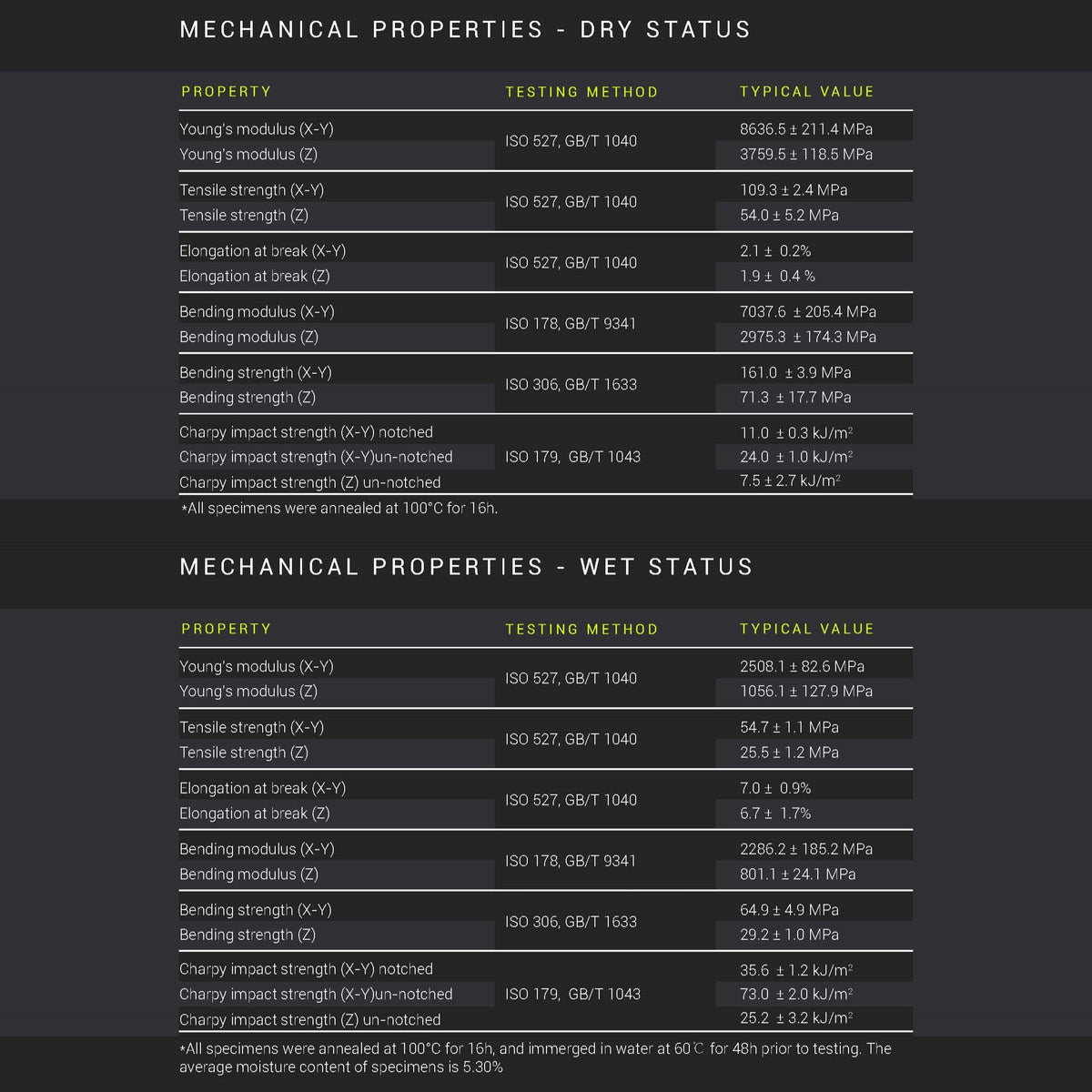

- Exceptional Strength & Stiffness: Tensile strength up to 109 MPa and Youngs modulus over 8.6 GPa (XY), providing robust, rigid parts.

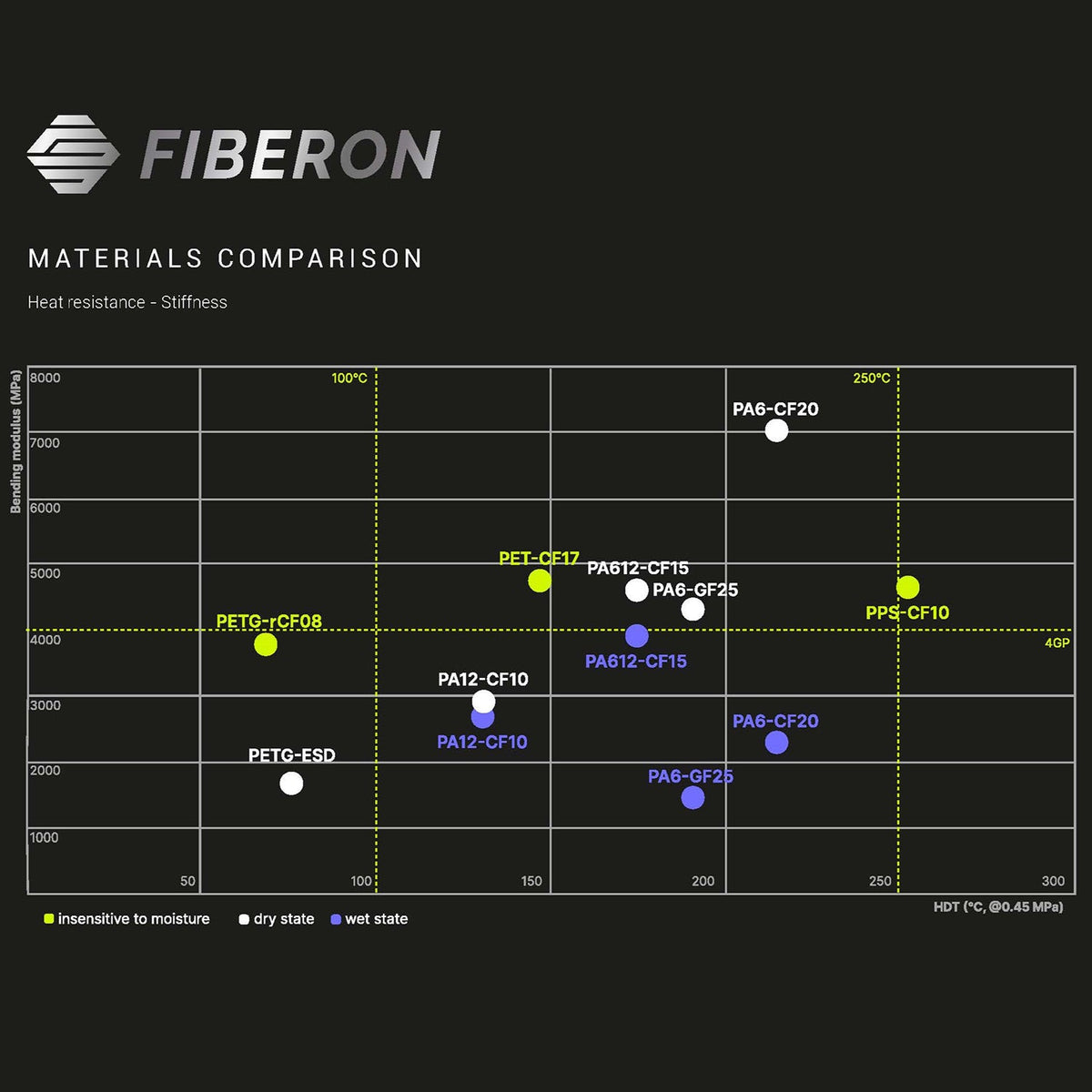

- High Heat Resistance: Withstands temperatures up to 215°C, suitable for parts exposed to high thermal loads.
- Superior Layer Adhesion: Fiber Adhesion™ technology ensures strong interlayer bonding and cohesive, durable prints.
- Dimensional Stability: Minimal warping and excellent size stability, even on large or complex prints.
- Chemical Resistance: Suitable for use in chemically aggressive environments.
Easy to Print for Advanced Users
While engineered for high performance, Fiberon™ PA6-CF20 is optimized for reliable printing on advanced FDM/FFF 3D printers equipped with an all-metal hotend and a hardened nozzle due to the abrasive carbon fiber content. Filament drying and post-print annealing are recommended for best results.
Same Trusted Formula, New Name
Fiberon™ PA6-CF20 is the same proven formula as PolyMide™ PA6-CF, though it may print in a slightly darker black shade than its predecessor.

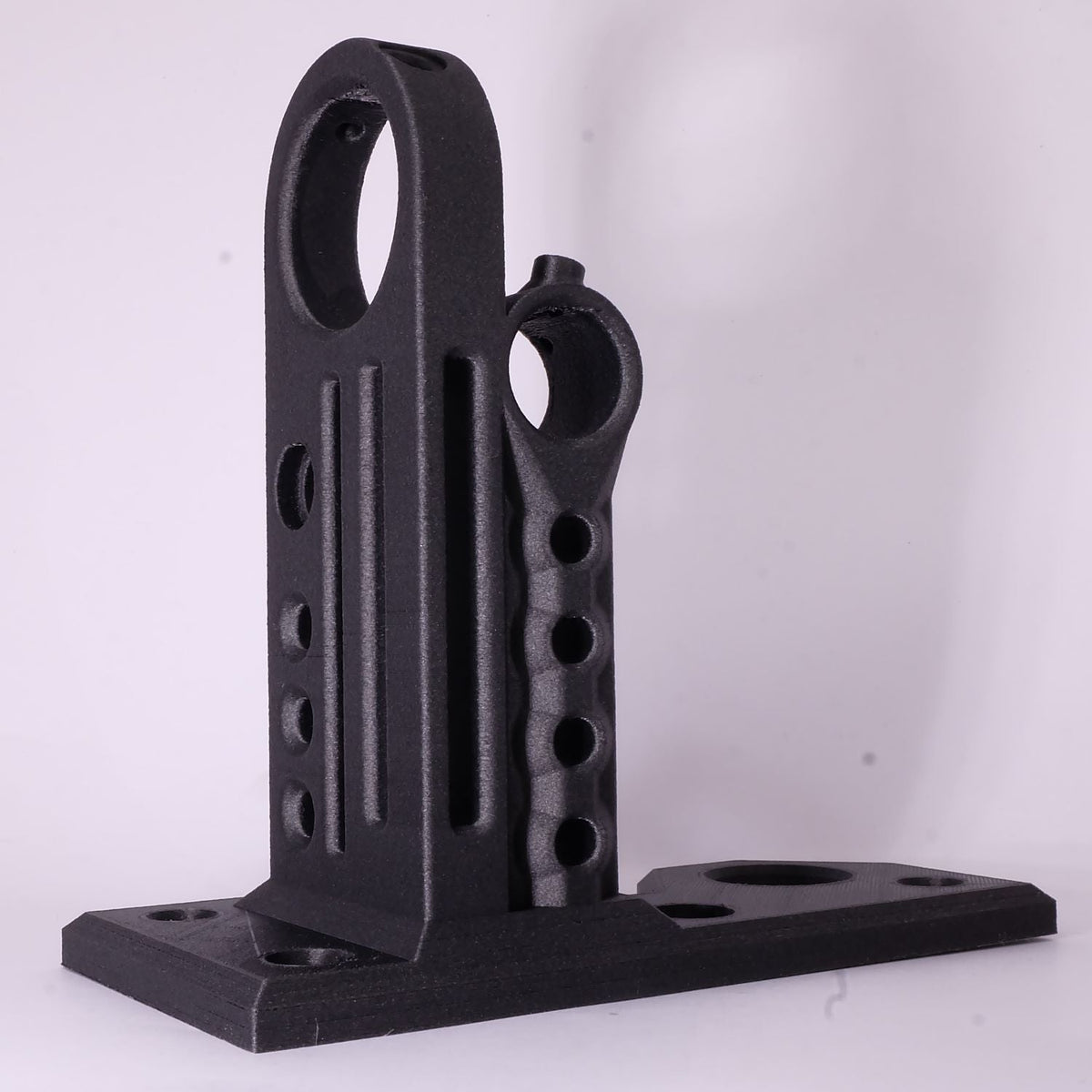

Choose Fiberon™ PA6-CF20 for parts that demand maximum strength, heat resistance, and durability in industrial and engineering environments.
Printing Requirements
- All-metal hotend 280˚C+
- Hardened nozzle
- Filament dryer
- Annealing post printing
- Moisture conditioning after Annealing
Printing Tips
- Use a wear-resistant nozzle, such as hardened steel or ruby; the TDS notes that brass-nozzle life may be approximately 9 hours.
- Store and print under dry conditions (relative humidity below 20%); dry at 100°C for 10 hours before use.
- Use a 40-50°C build plate, and turn the cooling fan OFF; an actively heated chamber is not required.
- Use glue stick or Magigoo PA if bed adhesion is weak.
- If the material is used as its own support, remove the support before excessive moisture absorption to avoid permanent bonding.
- Anneal at 100°C for 16 hours when the annealed performance stated in the TDS is required.
Print Settings
Printing Temperature: 280˚C - 300˚C
Build Plate Temperature: 40˚C - 50˚C
Chamber Temperature: Room Temperature
Printing Speed: up to 300mm/s
Cooling Fan: OFF
Direct Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Indirect Drive:
Retraction Distance: 6mm
Retraction Speed: 60mm/s
Recommended Drying Settings
Regular Oven: 100˚C for 10h
PolyDryer: Level 3 for 18h
(Only if the material has absorbed moisture)
Annealing Settings
100˚C for 16h
Certifications
REACH | RoHS | 889 | PCP | ISO9001 CERT | PROP65WARNING
