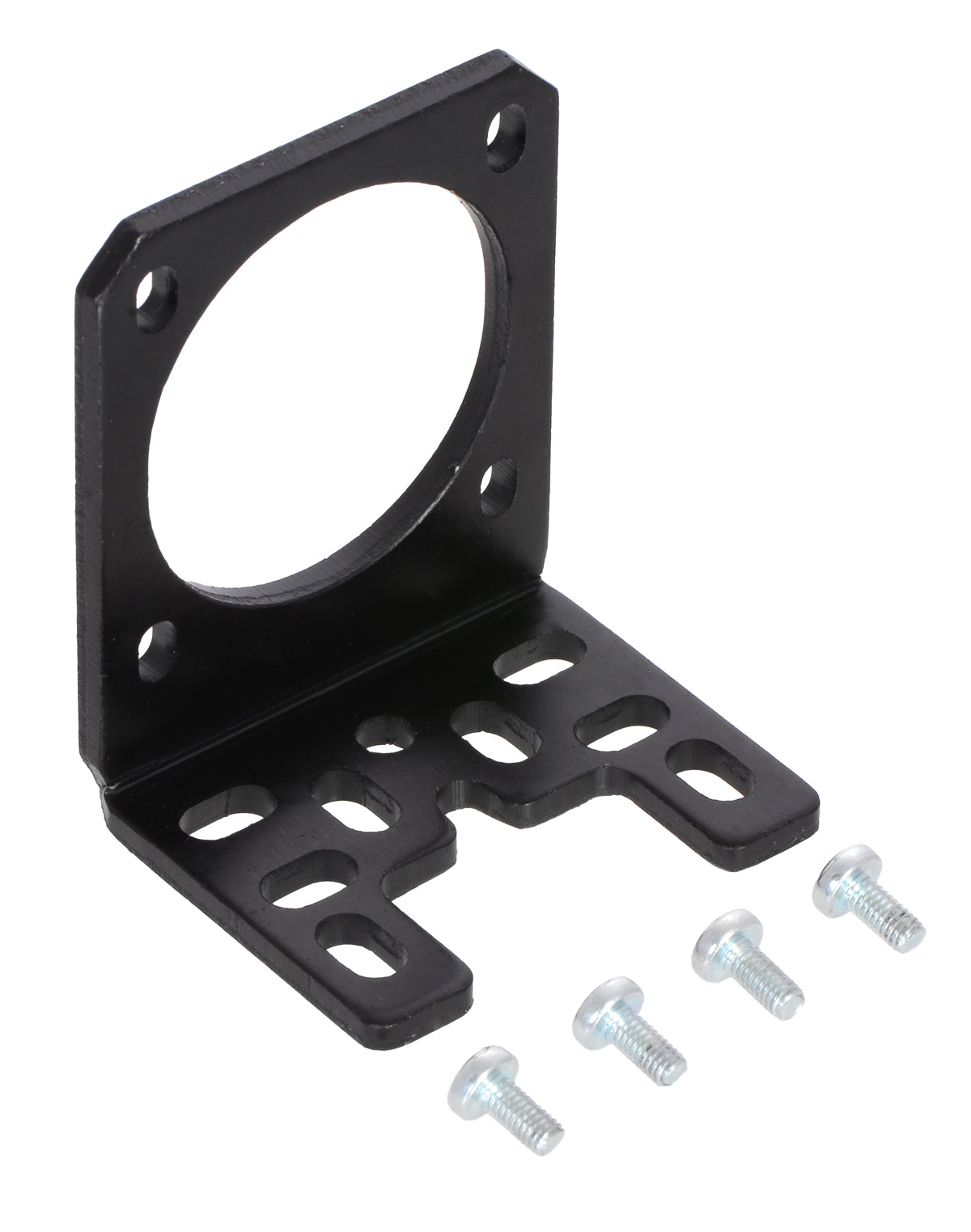

Pololu stamped aluminum L-bracket for NEMA 17 stepper motors with included M3 screws.

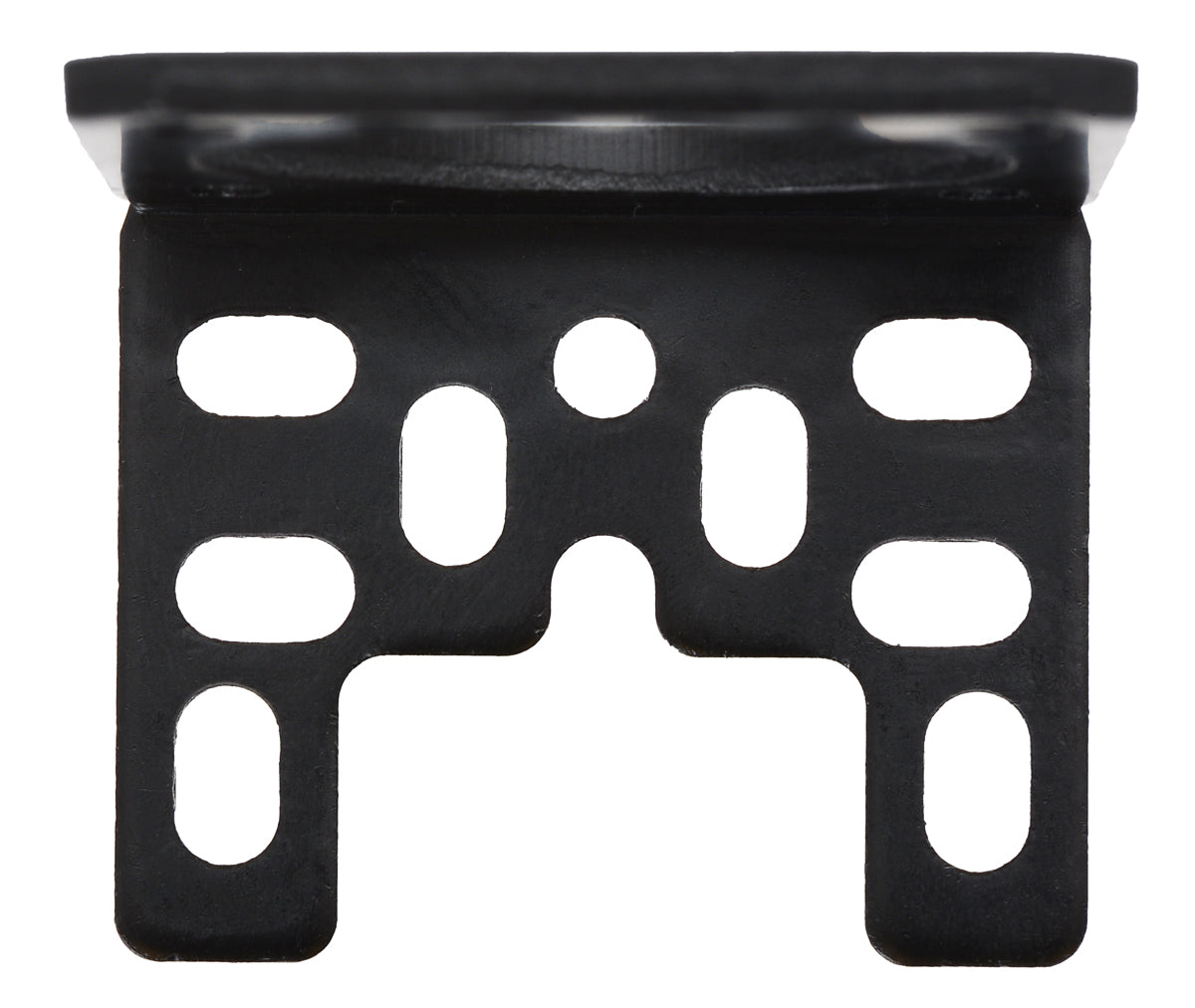

The slots and holes that can be used to mount the NEMA 17 stepper motor bracket to a surface.

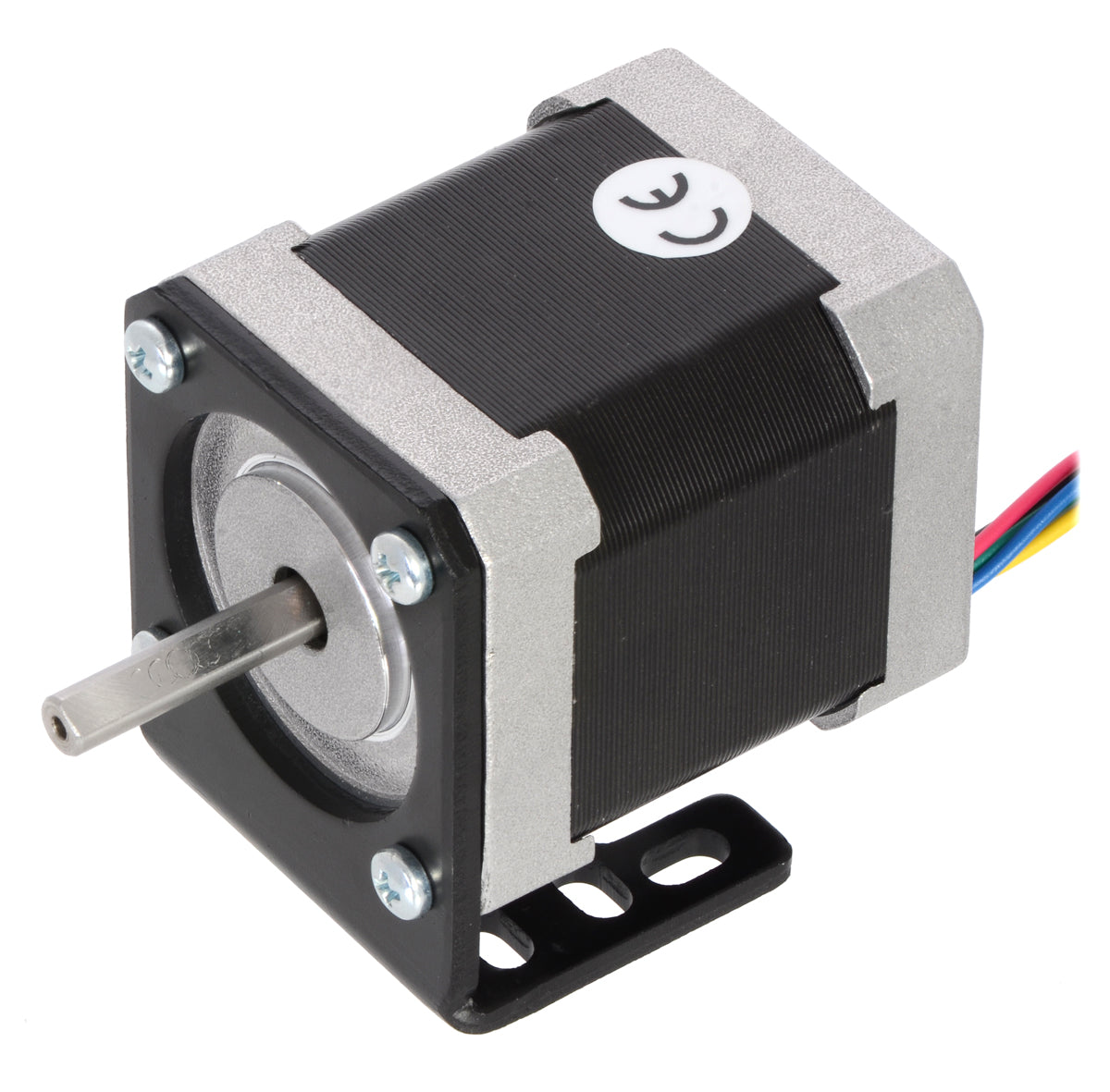

NEMA 17 stepper motor (item #1200) mounted with a Pololu stamped aluminum L-bracket for NEMA 17 stepper motors.

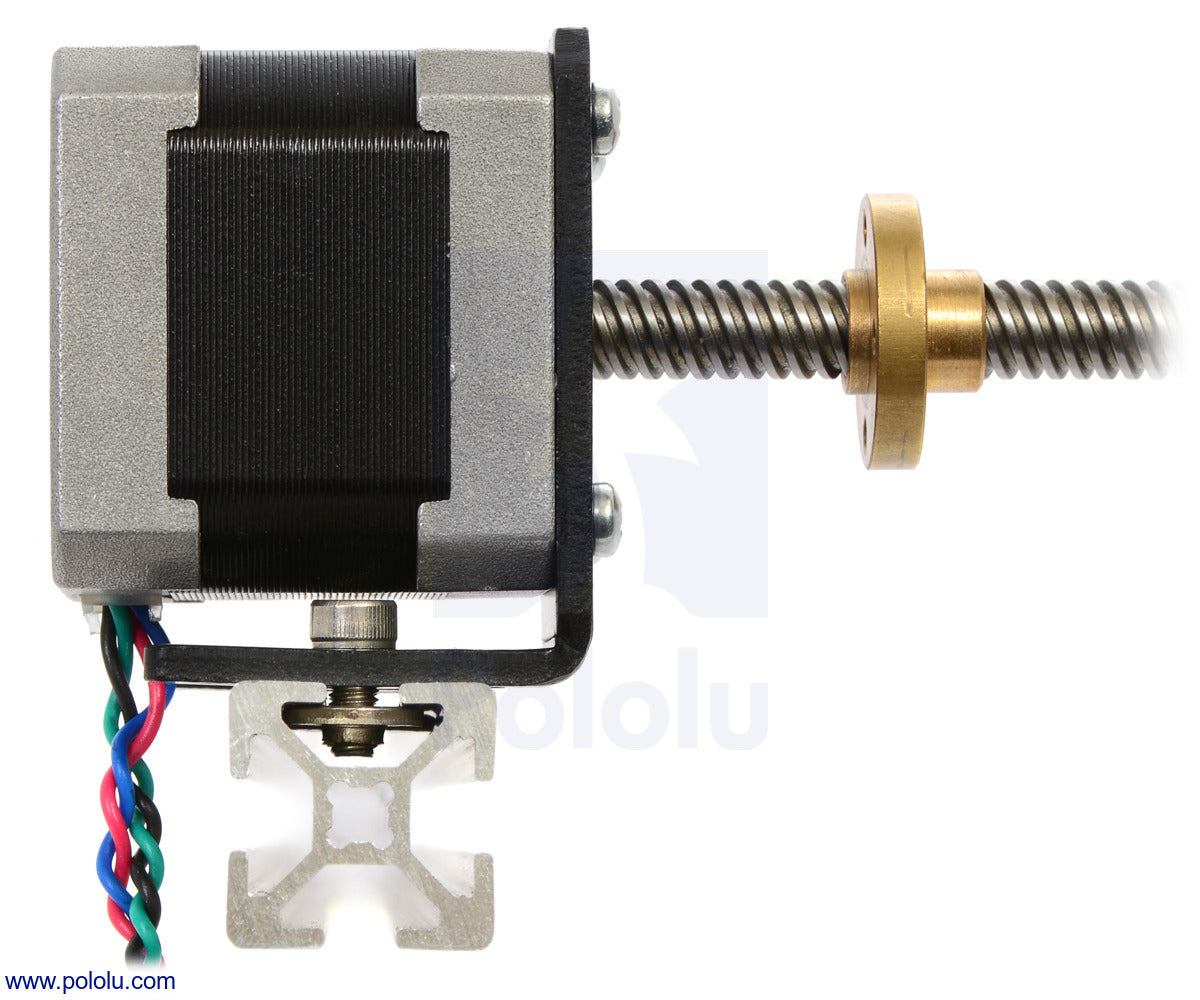

NEMA 17 stepper motor with lead screw mounted with a stamped aluminum L-bracket.
Dimension diagram of the Pololu stamped aluminum L-bracket for NEMA 17 stepper motors. Units are mm over [inches].

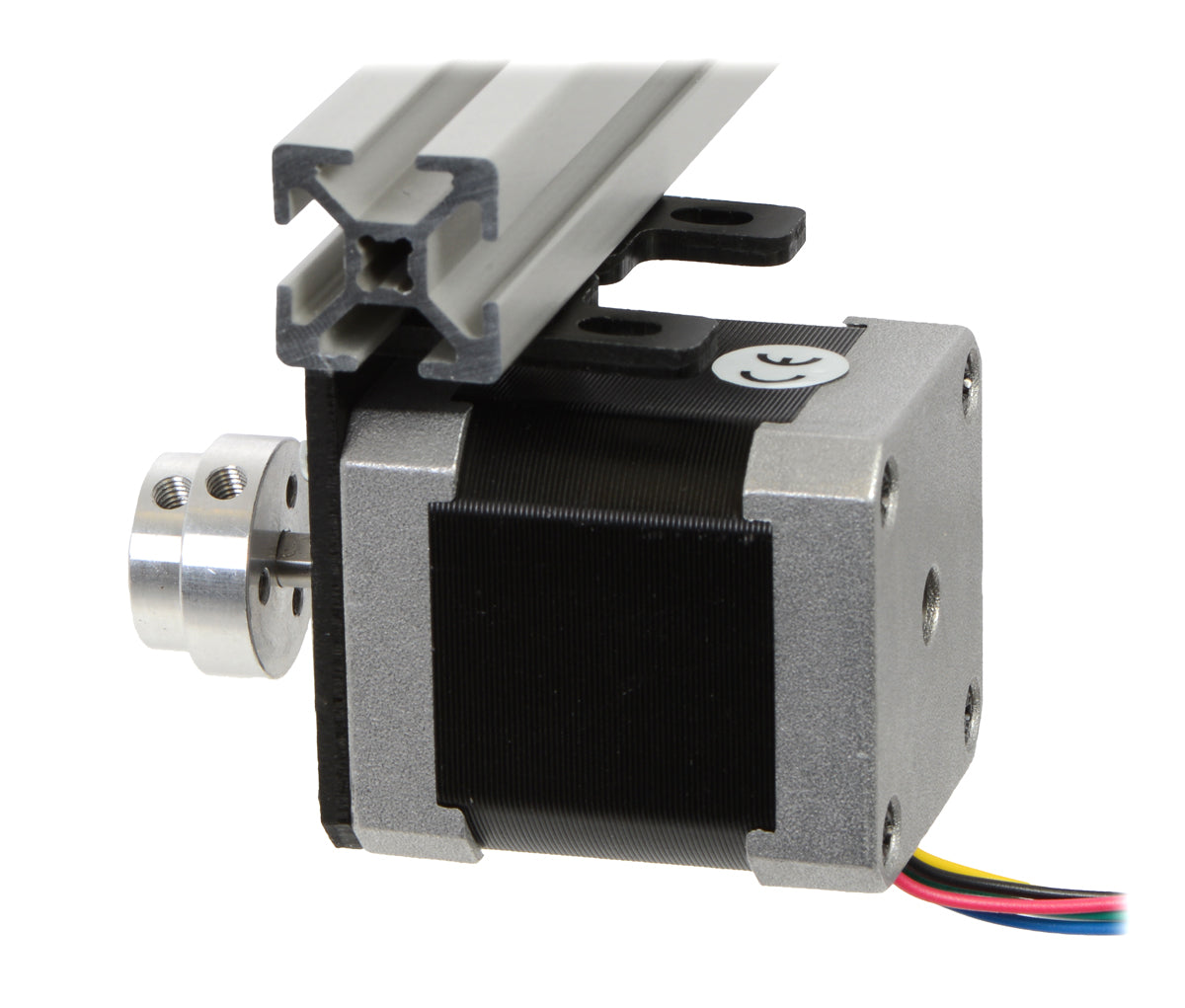

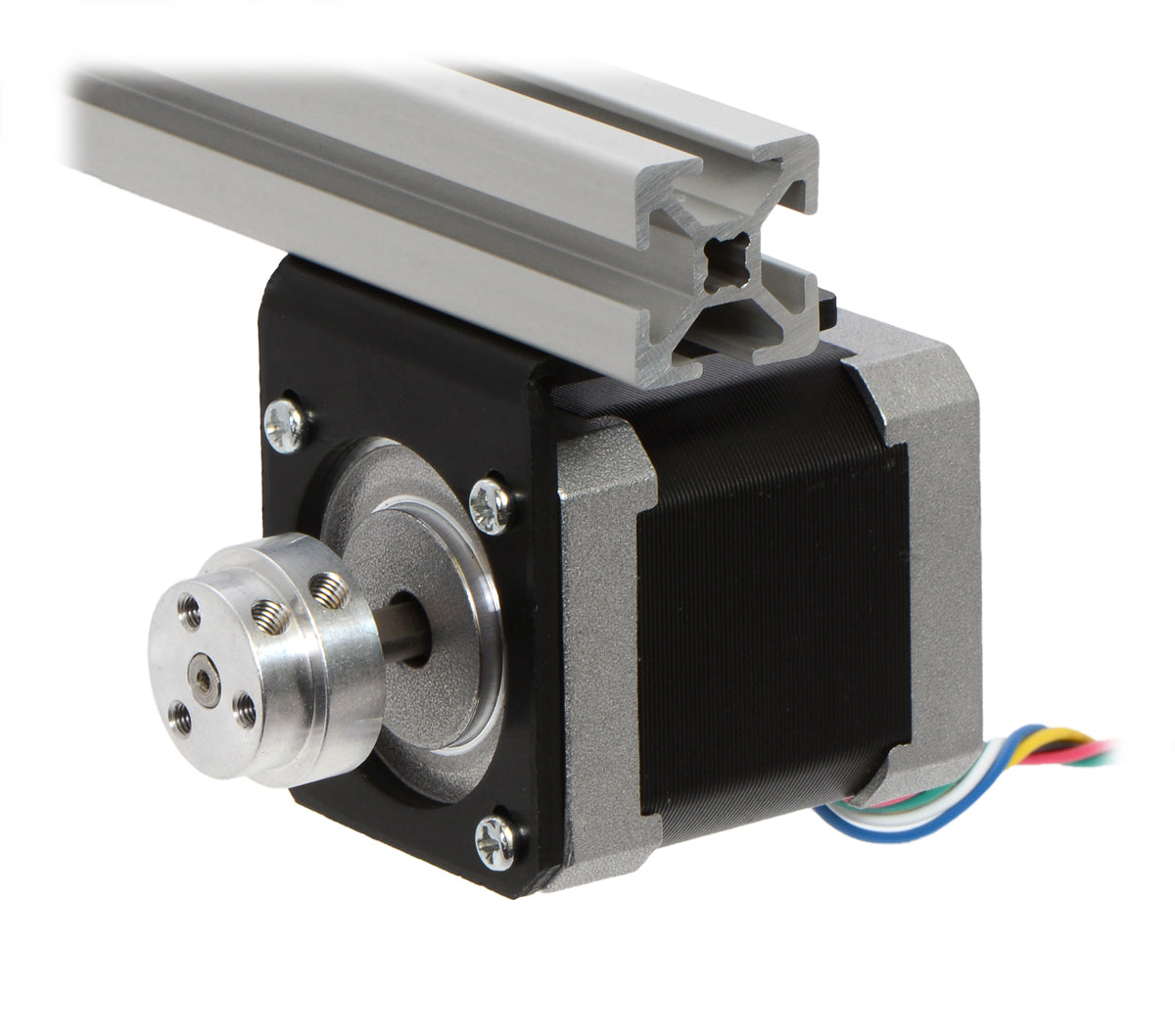

The machined piece of the 5 mm scooter wheel adapter mounted to the output shaft of a stepper motor.
The machined piece of the 5 mm scooter wheel adapter mounted to the output shaft of a stepper motor.

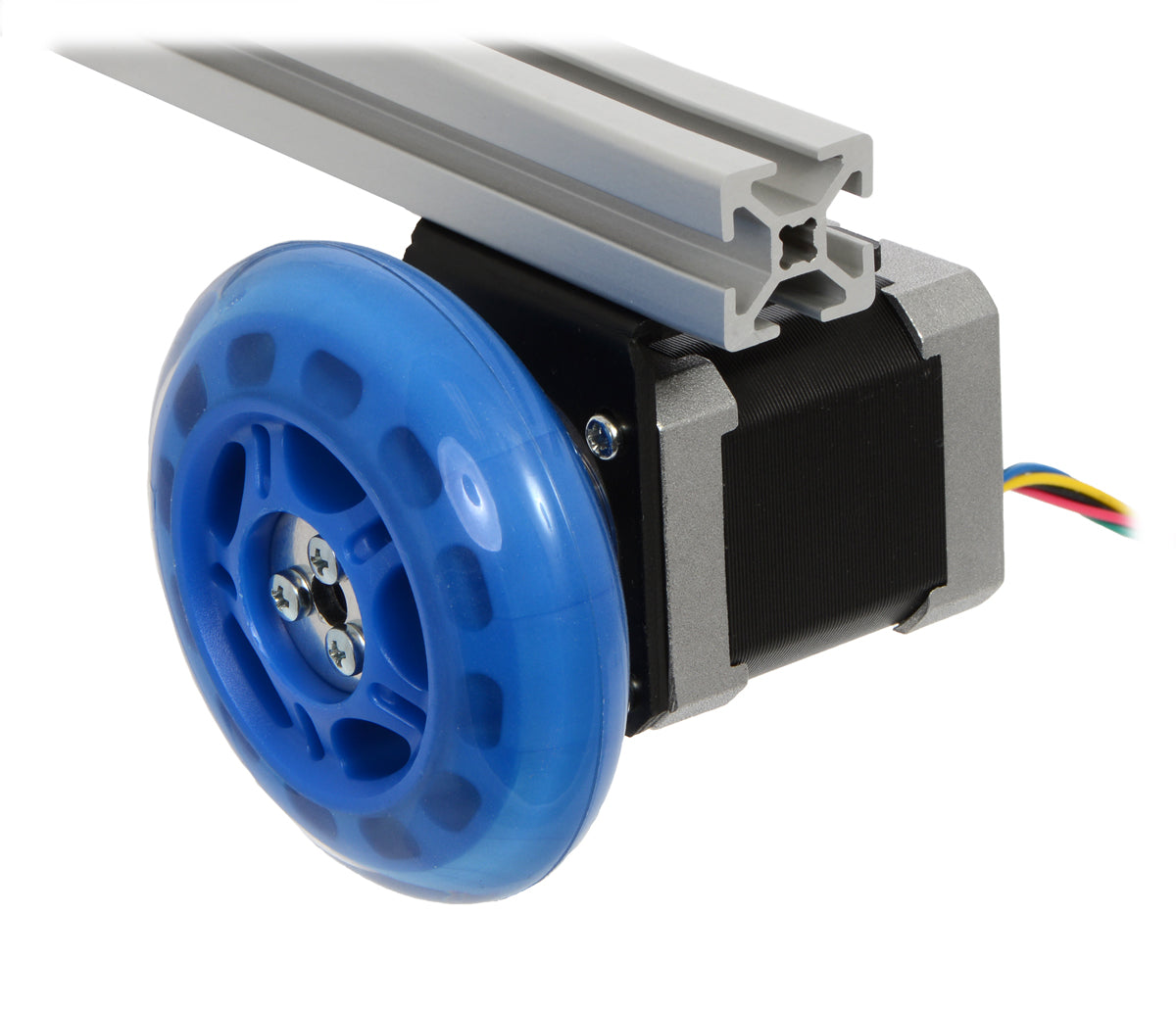

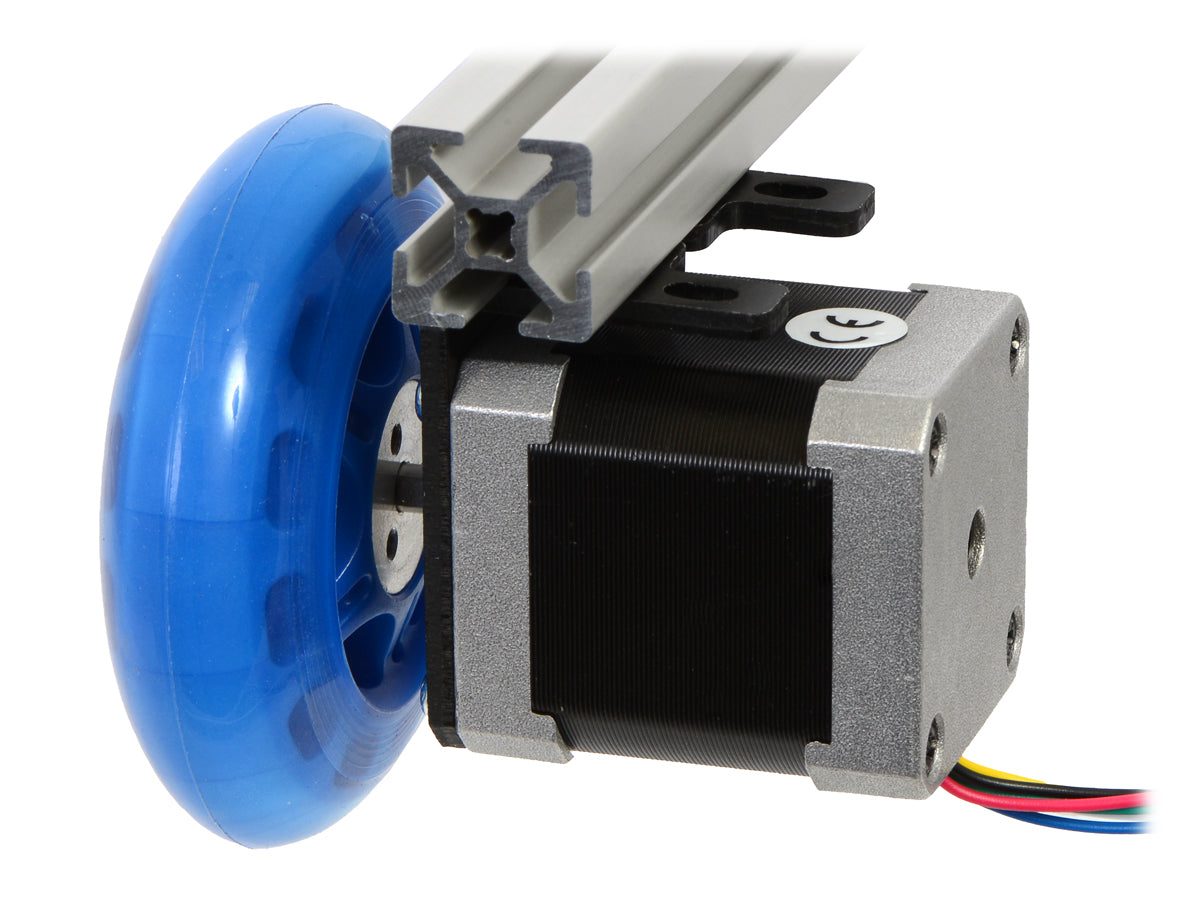

A stepper motor connected to a scooter wheel by the 5 mm scooter wheel adapter.
A stepper motor connected to a scooter wheel by the 5 mm scooter wheel adapter.
Roll over image to zoom in Click on image to zoom
Pololu stamped aluminum L-bracket for NEMA 17 stepper motors with included M3 screws.The slots and holes that can be used to mount the NEMA 17 stepper motor bracket to a surface.NEMA 17 stepper motor (item #1200) mounted with a Pololu stamped aluminum L-bracket for NEMA 17 stepper motors.NEMA 17 stepper motor with lead screw mounted with a stamped aluminum L-bracket.Dimension diagram of the Pololu stamped aluminum L-bracket for NEMA 17 stepper motors. Units are mm over [inches].The machined piece of the 5 mm scooter wheel adapter mounted to the output shaft of a stepper motor.The machined piece of the 5 mm scooter wheel adapter mounted to the output shaft of a stepper motor.A stepper motor connected to a scooter wheel by the 5 mm scooter wheel adapter.A stepper motor connected to a scooter wheel by the 5 mm scooter wheel adapter.

Pololu Stamped Aluminum L-Bracket for NEMA 17 Stepper Motors Pololu 2266

PololuSKU: MTP018
Price:
S$5.73
Stock:
Sold out

Description

This black anodized aluminum bracket lets you securely mount typical NEMA 17-size stepper motors to your project. The bracket features several slots and holes for a wide variety of mounting solutions, and four M3×6mm screws are included for securing the motor to the bracket.




This lightweight (about 15 g) but strong bracket is made from 3mm-thick black anodized aluminum and is specifically designed to work with the typical faceplate mounting holes of NEMA 17 stepper motors. The slots through which the motor mounts to the bracket allow for 2 mm of play for fine-tuning position, and four 6 mm M3 screws are included for securing the motor to the bracket (note: these M3 screws work with all of the NEMA 17 stepper motors we carry; different screws might be required when using this bracket with stepper motors from other suppliers). The other side of the bracket includes a variety of slots and holes that can be used with #6, #8 and M4 screws.

This bracket makes it easy to mount and integrate NEMA 17 size motors like our stepper motor with lead screw into your project. These brackets also fit the 42×18.6mm Sanyo pancake motor and the 42×11.6mm Sanyo pancake motor, though the two Sanyo motors have short output shafts that will only extend two millimeters past the edge of the bracket.



Dimension diagram of the Pololu stamped aluminum L-bracket for NEMA 17 stepper motors. Units are mm over [inches].

This drawing is also available as a downloadable PDF (178k pdf).

Specifications

Parameter Value
Weight 15 g
