NVIDIA Jetson Orin Nano Super 8GB Developer Kit

NvidiaSKU: SBC034

Price:
Sale priceS$429.00

Lead Time: TBC


Description

Availability: Lead time TBC
To order, please email us at contact@makersupplies.sg

The Most Affordable Generative AI Supercomputer

The NVIDIA Jetson Orin Nano Super Developer Kit is a compact, yet powerful
computer that redefines generative AI for small edge devices. It delivers up to 67
TOPS of AI performance—a 1.7X improvement over its predecessor—to seamlessly
run a wide variety of generative AI models, like vision transformers, large language
models, vision-language models, and more. At a great price point, it provides developers, students, and makers with the most affordable and accessible platform with the support of the NVIDIA AI software and a broad AI software ecosystem to democratize generative AI at the edge.

Existing Jetson Orin Nano Developer Kit users can experience this performance boost with just a software upgrade, so everyone can now unlock new possibilities with generative AI.



Feature

  • Excellent AI Performance for production: low power and low latency with up to 67 TOPS AI performance, featuring an Ampere architecture GPU and a 6-core ARM CPU, which enables multiple concurrent AI application pipelines and high-performance inference.
  • Hand-size edge AI device: compact size at 100mm x79mm x 21mm, includes Jetson Orin™ Nano 8GB module, a heatsink with a fan and a power adapter.
  • Expandable with rich I/Os: 4x USB 3.2 Gen 2 ports, DP 1.2, M.2 key E with pre-installed Wi-Fi module, 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2 connectors, Gigabit Ethernet, 40-pin GPIO.

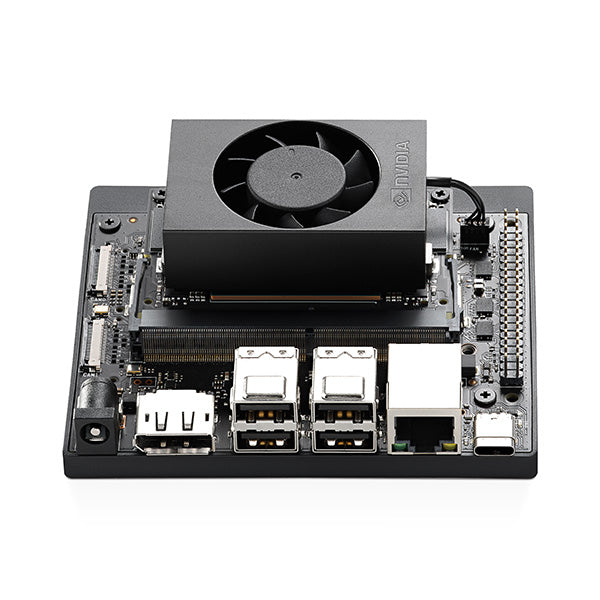

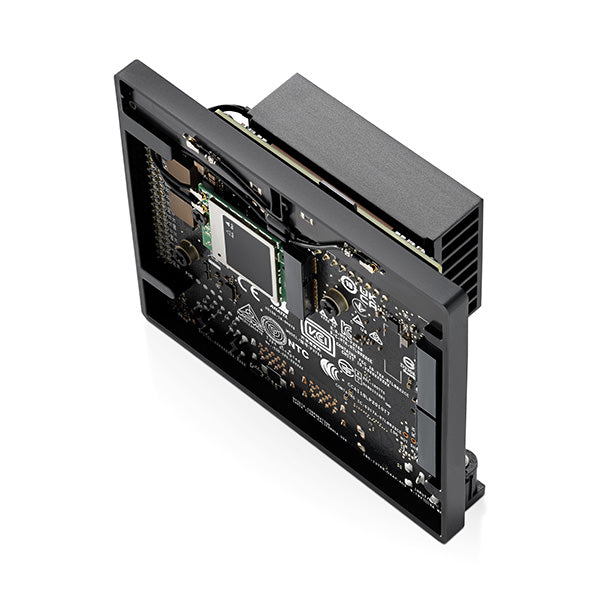

Jetson Orin Nano Developer Kit

The developer kit comprises a Jetson Orin Nano 8GB module and a reference
carrier board that can accommodate all Orin Nano and NVIDIA Orin NX modules.
This provides the ideal platform for prototyping your next-gen edge-AI product.
The Jetson Orin Nano 8GB module features an Ampere architecture GPU and a
6-core ARM CPU, enabling multiple concurrent AI application pipelines and high-
performance inference. The carrier board boasts a wide array of connectors,
including two camera connectors that can handle 2-lane and 4-lane cameras.


The NVIDIA Jetson platform runs the NVIDIA AI software stack, with a variety of
available use-case-specific application frameworks. These include NVIDIA Isaac
for robotics, NVIDIA Metropolis for vision AI, and NVIDIA Holoscan for sensor
processing. You can save significant time with NVIDIA Omniverse Replicator for
synthetic data generation (SDG) and NVIDIA TAO Toolkit for fine-tuning pretrained
AI models from the NVIDIA® NGC catalog.


Ecosystem partners offer additional AI and system software, developer tools, and
custom software development. They can also help with cameras and other sensors,
as well as carrier boards and design services for your product.


Jetson Orin modules are unmatched in performance and efficiency for robots
and other autonomous machines. You now have the flexibility to create the next
generation of AI solutions with the latest NVIDIA technology. Together with the
world-standard NVIDIA AI software stack and an ecosystem of services and
products, your road to market has never been faster.



Specification

Jetson Orin Nano System on Module

AI Performance

Jetson Orin Nano 8GB with SD card slot on module - 67 TOPS

GPU

NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and

32 Tensor cores

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

Memory

8GB 128-bit LPDDR5 102 GB/s

Video Encoder

1080p30 supported by 1-2 CPU cores

Video Decoder

1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)

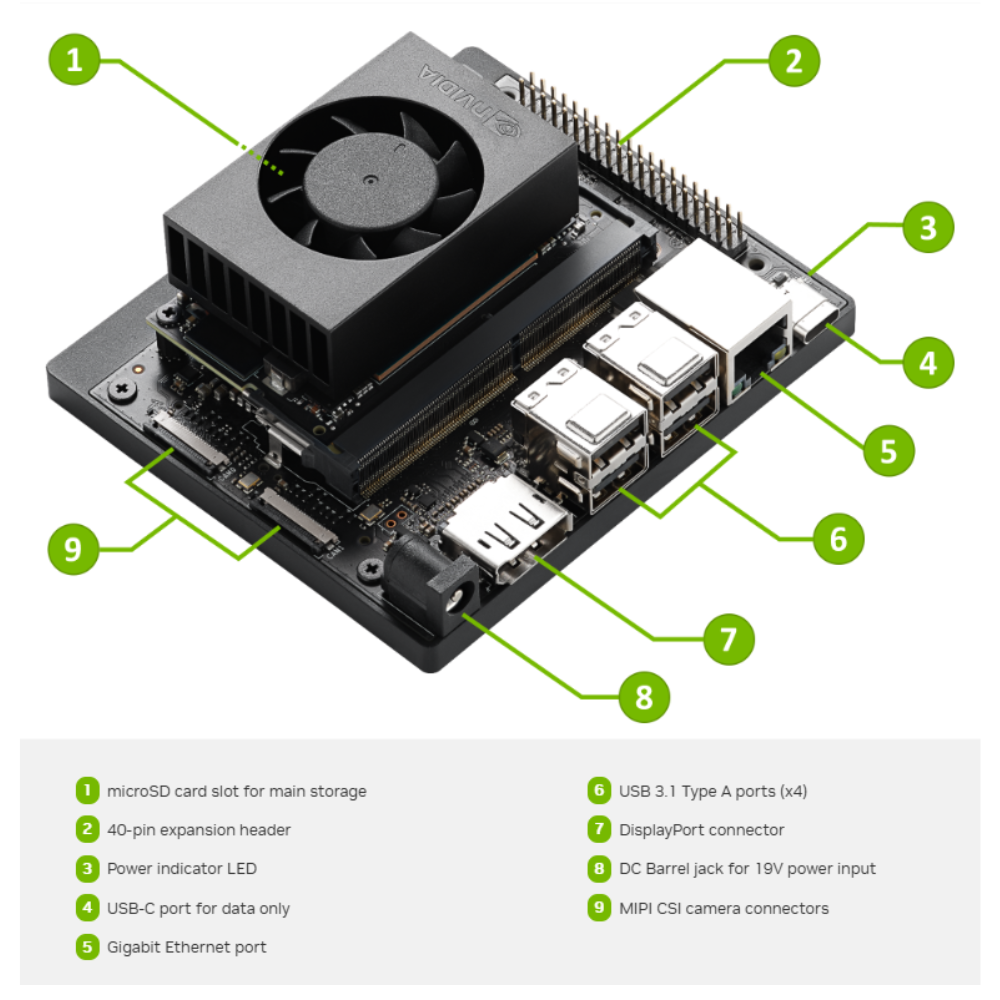

Carrier Board

Storage

1x microSD slot (UHS-1 cards up to SDR104 mode)

Networking

Ethernet

1x Gigabit Ethernet (10/100/1000M)

M.2 KEY E

1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module);

PCIe (x1), USB 2.0, UART, I2S, and I2C

I/O

USB

4x Type A USB 3.2 Gen2

1x Type C for UFP

CSI Camera

2x MIPI CSI-2 (22pin)

Display

1x DP 1.2 (+MST) connector

Fan

1x 4 pin Fan Connector (5V PWM)

CAN

1x CAN

Multifunctional Port

1x 40-Pin Expansion header

1x 12-Pin Control and UART header

RTC

RTC 2-pin, supports CR1220 but not included

Power Supply

9V-19V DC

Mechanical (W x D x H)

100mm x 79mm x 21mm

Product Weight

0.176 kg

Warranty

1-year warranty for development use only



Application Fields

  • AI Video Analytics
  • Machine Vision
  • Autonomous Mobile Robot (AMR)
  • Generative AI

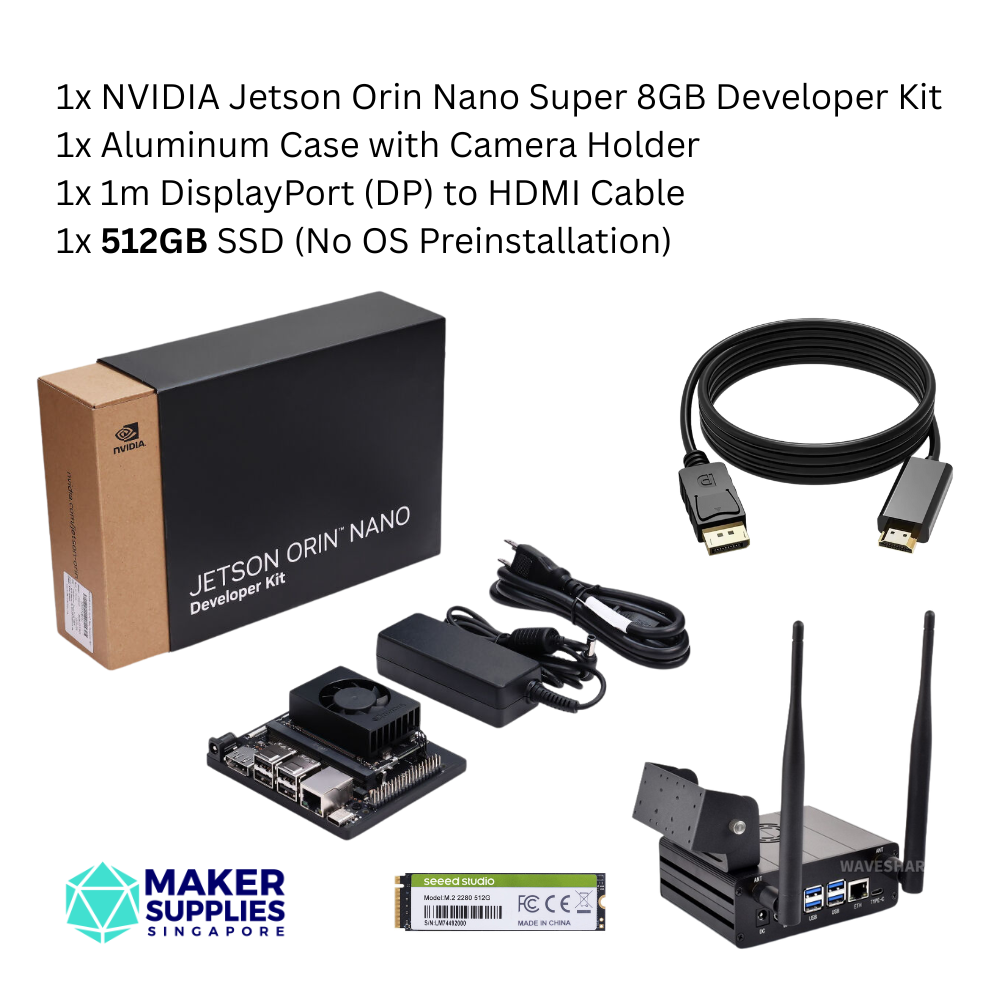

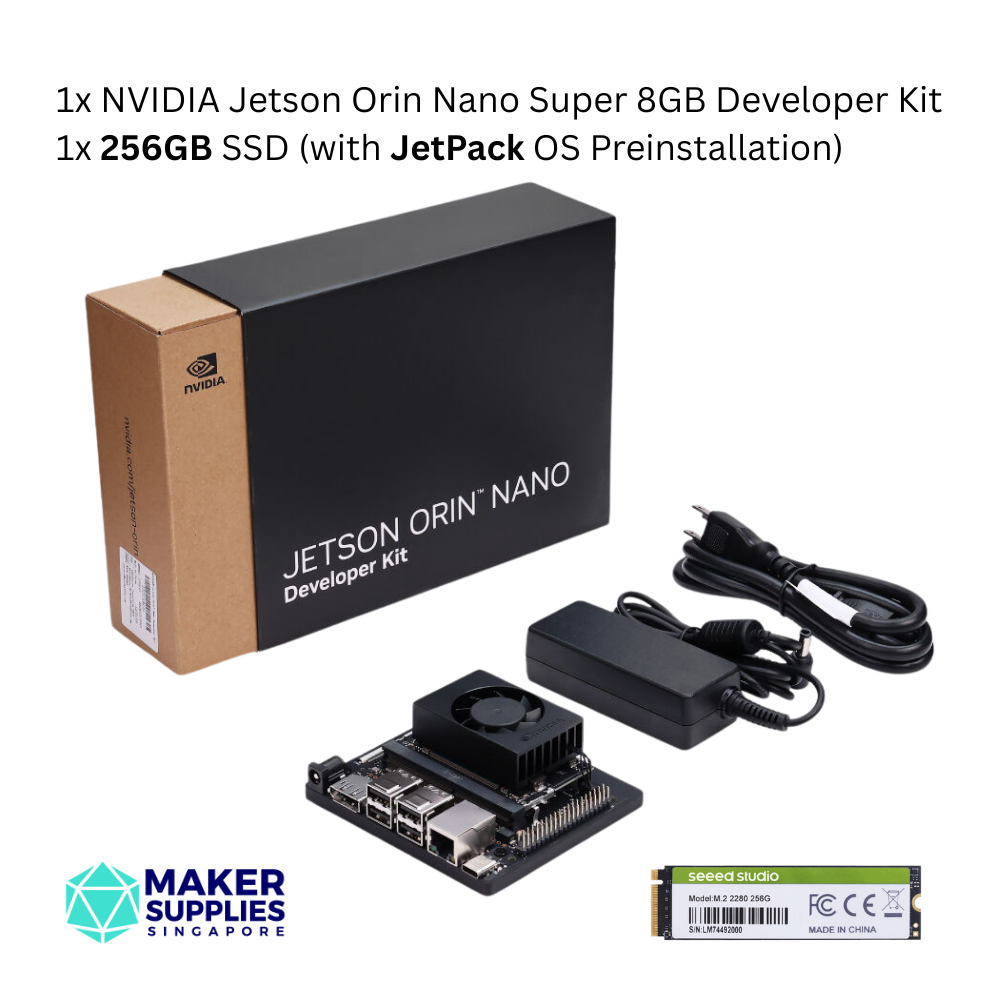

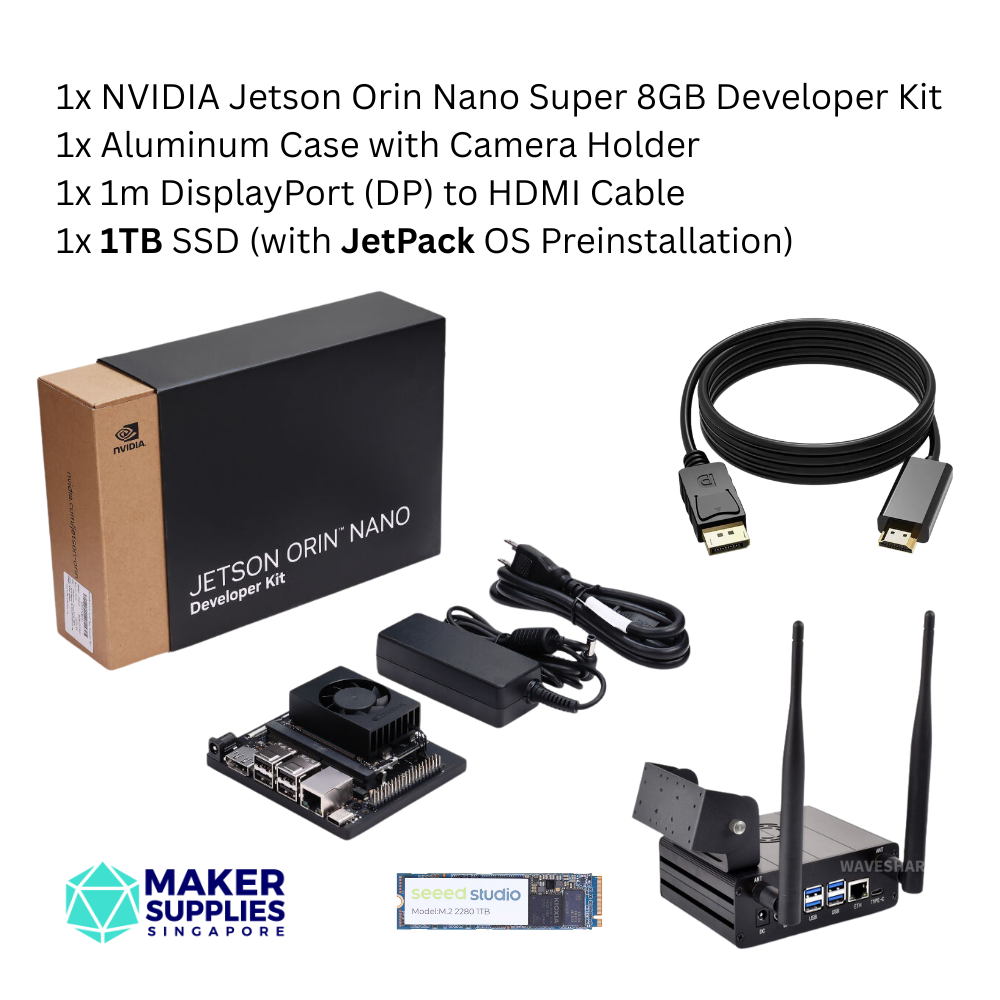

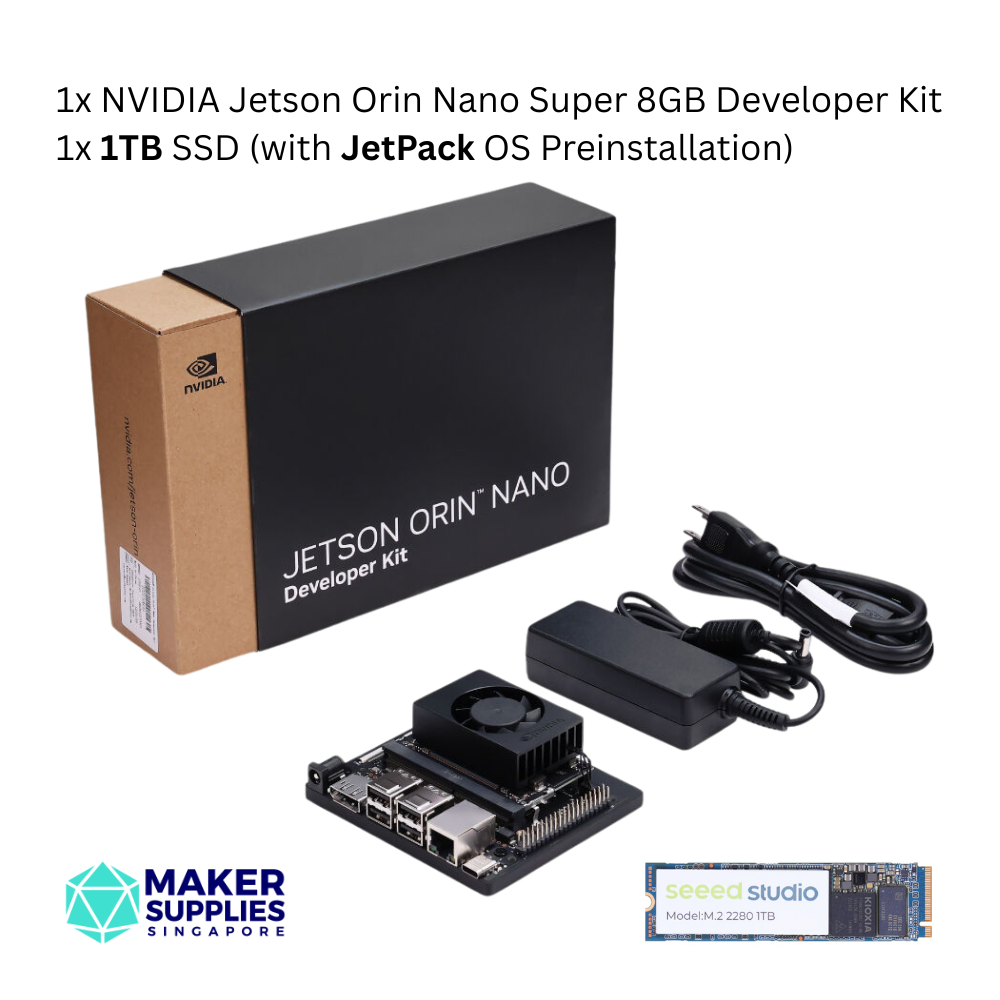

Developer Kit Contents

  • Jetson Orin Nano 8GB module with heat sink and reference carrier board
  • 19V Power Supply (45W)
  • Power Cable
  • 802.11ac/abgn wireless network interface controller
  • Quick Start and Support Guide


Manufacturer Part Number : 945-13766-0005-000 (UK/SG) / 945-13766-0000-000 (US)
