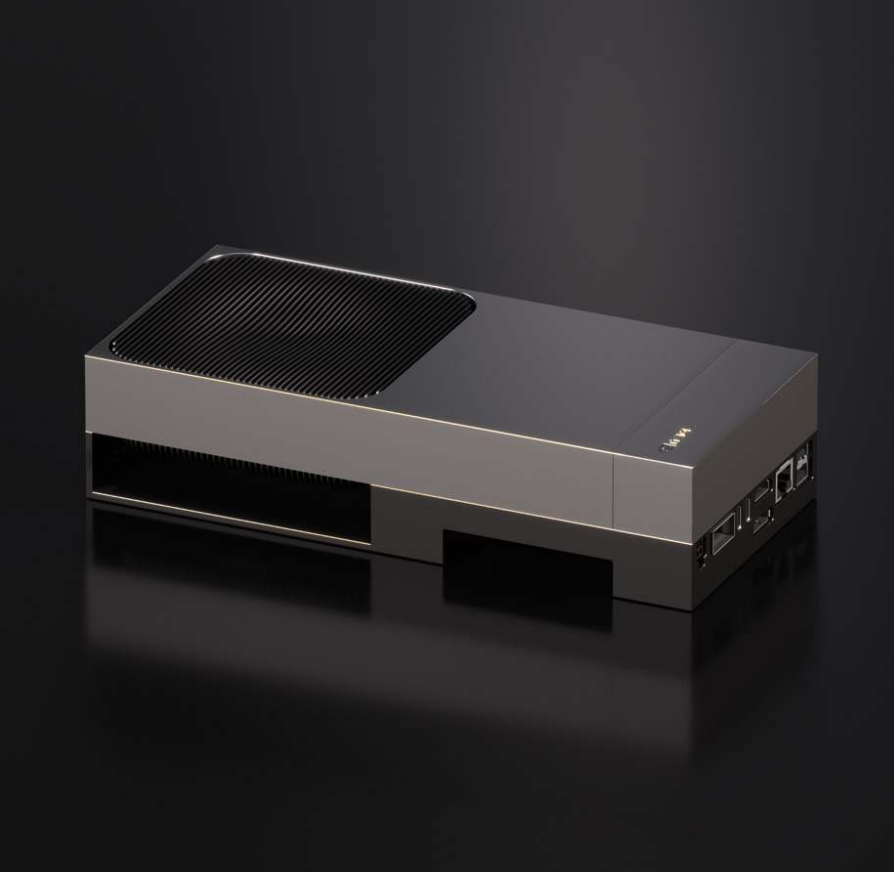

NVIDIA Jetson AGX Thor Developer Kit

NvidiaSKU: SBC036

Price:
Sale priceS$5,800.00

Lead Time: 2 to 4 weeks


Description

A Compact Powerhouse for Physical AI and Robotics

The NVIDIA® Jetson AGX Thor™ Developer Kit gives you unmatched performance and scalability. It’s powered by the NVIDIA Blackwell GPU and 128 GB of memory, delivering up to 2070 FP4 TFLOPS of AI compute to effortlessly run the latest generative AI models—all within a 130 W power envelope. Compared to NVIDIA Jetson AGX Orin™, it provides up to 7.5x higher AI compute and 3.5x better energy efficiency.

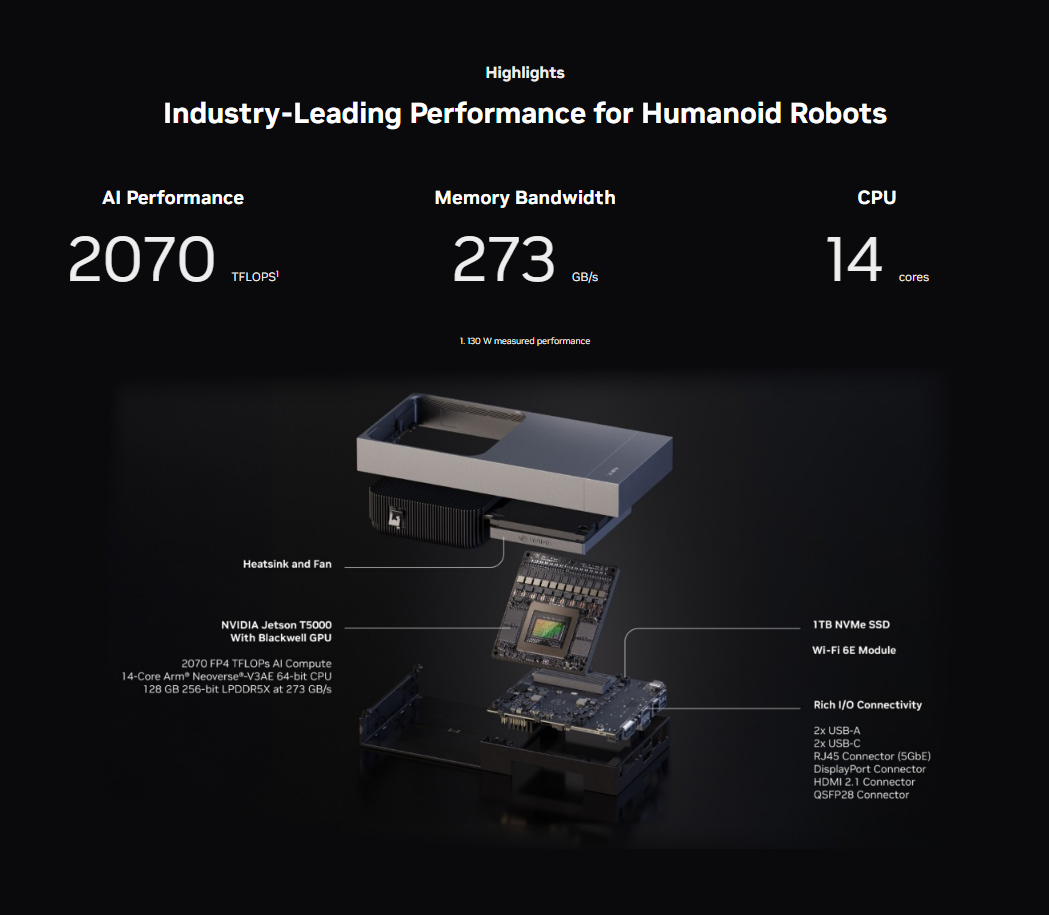

Features

  • Extreme AI Performance for Robotics

Powered by Jetson T5000 module, the Blackwell GPU with 2560 cores and 96 Tensor Cores, delivering up to 2070 FP4 / 1035 FP8 TFLOPS—ideal for running a wide range of generative AI models such as LLM, VLA (like NVIDIA® Issac GR00T N), ViT, etc.

  • Optimized for Transformer and Multimodal Workloads

Built-in Transformer engine, MIG (Multi-Instance GPU) support, and 128 GB LPDDR5X (273 GB/s) memory enable efficient training and inference at the edge.

  • Real-Time Processing and Control

Features a 14-core Arm® Neoverse®-V3AE CPU for fast, deterministic performance in real-time robotic applications.

  • High-Speed Sensor and Network Integration

Supports up to 4× 25GbE connections, 140W power supply, and a rich I/O set including HDMI, DP, USB 3.2/USB-C, CAN, and GbE for high-bandwidth and low-latency real-time sensor fusion.



Specifications





Jetson AGX Thor Developer Kit

Jetson T5000 Module

AI Performance

2070 TFLOPS (FP4—Sparse)



GPU

2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores

Multi-Instance GPU (MIG) with 10 TPCs



GPU Max Frequency

1.57 GHz



CPU

14-core Arm® Neoverse®-V3AE 64-bit CPU

1 MB L2 cache per core

16 MB shared system L3 cache



CPU Max Frequency

2.6 GHz



Vision Accelerator

1 个 PVA v3



Memory

128 GB 256-bit LPDDR5X

273 GB/s



Storage

1 TB NVMe M.2 Key M Slot

Supports NVMe through PCIe

Supports SSD through USB3.2

Video Encode

6x 4Kp60 (H.265)

12x 4Kp30 (H.265)

24x 1080p60 (H.265)

50x 1080p30 (H.265)

48x 1080p30 (H.264)

6x 4Kp60 (H.264)



Video Decode

4x 8Kp30 (H.265)

10x 4Kp60 (H.265)

22x 4Kp30 (H.265)

46x 1080p60 (H.265)

92x 1080p30 (H.265)

82x 1080p30 (H.264)

4x 4Kp60 (H.264)



Camera

HSB camera via QSFP slot

USB camera

Up to 20 cameras via HSB

Up to 6 cameras through 16x lanes MIPI CSI-2

Up to 32 cameras using Virtual Channels

C-PHY 2.1 (10.25 Gbps)

D-PHY 2.1 (40 Gbps)

PCIe*

M.2 Key M slot with x4 PCIe Gen5

M.2 Key E slot with x1 PCIe Gen5

Up to Gen5 (x8 lanes)

Root port only—C1 (x1) and C3 (x2)

Root Point or Endpoint—C2 (x1), C4 (x8), and C5 (x4)

USB*

2x USB-A (3.2 Gen2)

2x USB-C (3.1)

xHCI host controller with integrated PHY (up to)

3x USB 3.2

4x USB 2.0

Networking*

1x 5GBe RJ45 connector

1x QSFP28 (4x 25 GbE)

4x 25 GbE

Display

1x HDMI 2.0b

1x DisplayPort 1.4a

4x shared HDMI2.1

VESA DisplayPort 1.4a—HBR2, MST

Other I/O

QSFP connector

M.2 Key E expansion slot (WLAN/BT, x1 PCIe, USB2.0, UART, I2C, I2S)

M.2 Key M connector (NVMe for storage)

PCIe x4 lane, I2C, PCIe x2 lane

2x 13-pin CAN header

2x 6-pin automation header

LED

JTAG connector (2x 5-pin header)

1x fan connector —12V, PWM, and Tach

Audio panel header (2x 5-pin)

Microfit power jack

RTC backup battery connector 2-pin

5x I2S/2x audio hub (AHUB), 2x DMIS, 4x UART, 4x CAN, 3x SPI, 13x I2C, 6x PWM outputs

Power

40W – 130W



Mechanical

243.19 mm x 112.40 mm x 56.88 mm

Thermal Transfer Plate (TTP) and optional fan or heat sink

100 mm x 87 mm

699-pin B2B connector

Integrated Thermal Transfer Plate (TTP) with heatpipe

* Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.

** Low-speed I/O spec is subject to change.



Developer Kit Contents

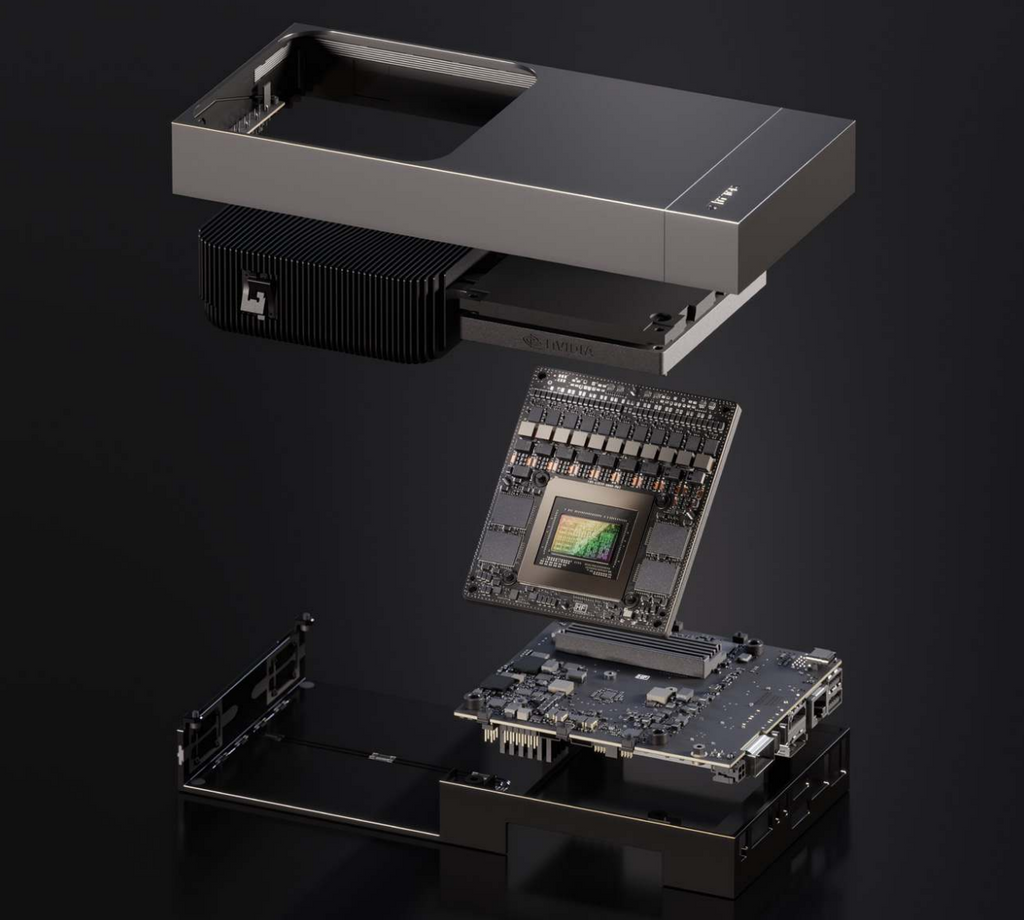

  • NVIDIA Jetson™ T5000 module with heat sink and reference carrier board
  • DC power 140W
  • 802.11ax wireless network interface controller
  • 1 TB NVMe populated in M.2 Key-M slot
  • Quick Start Guide


Manufacturer Part Number : 945-14070-0080-000
