Description

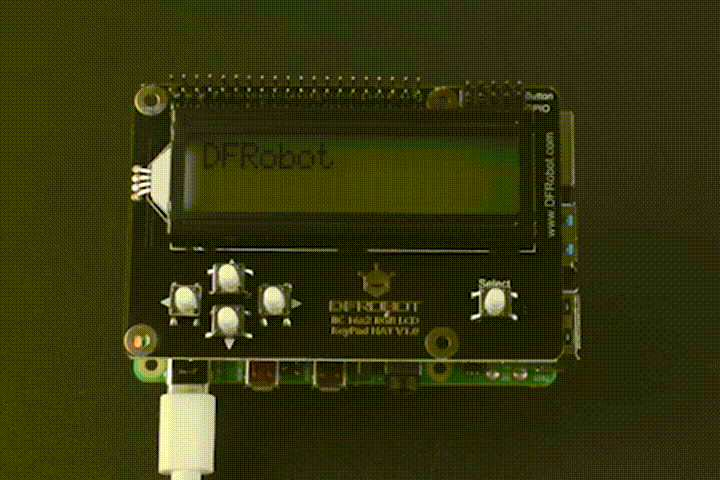

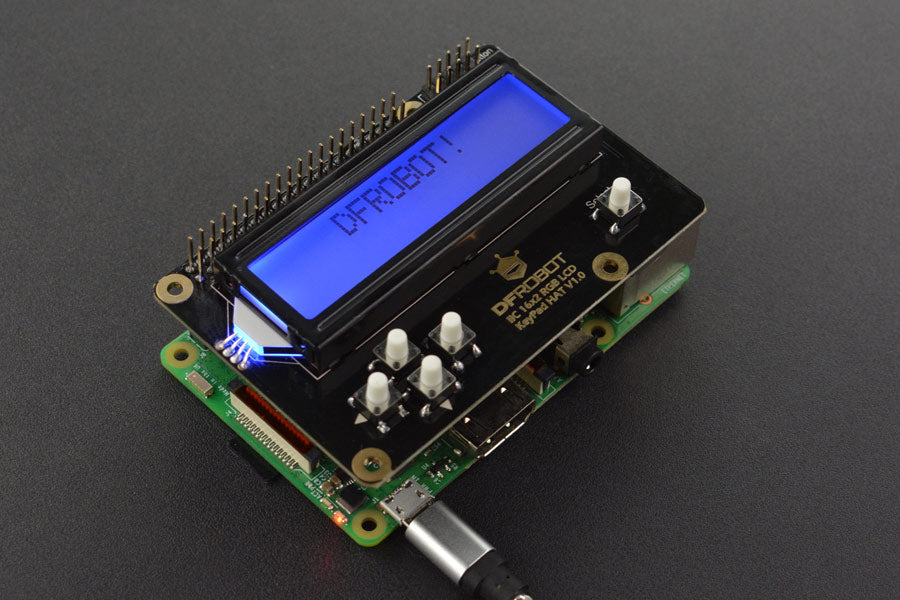

This 16 characters by 2 rows RGB LCD with Keypad HAT by DFRobot is perfect for adding a simple interface to your Raspberry Pi project!
Controlled via I2C, this HAT allows the control of the backlight color and brightness of the LCD. On the HAT is also 4 directional buttons and a selection button for user interactions.
This HAT also breaks out the GPIO header pins of the Raspberry Pi so that you can continue to access the pins even when the HAT is attached.
SPECIFICATION
- Supply Voltage: 5V
- Logic Voltage: 3.3V
- Operating Current: <60mA
- 16*2 LCD Display
- Communication: IIC
- Font: 5*8
- Backlight: RGB adjustable backlight (16 million)
- Operating Temperature: -20 ~+70℃
- Storage Temperature: -30 ~ +80℃

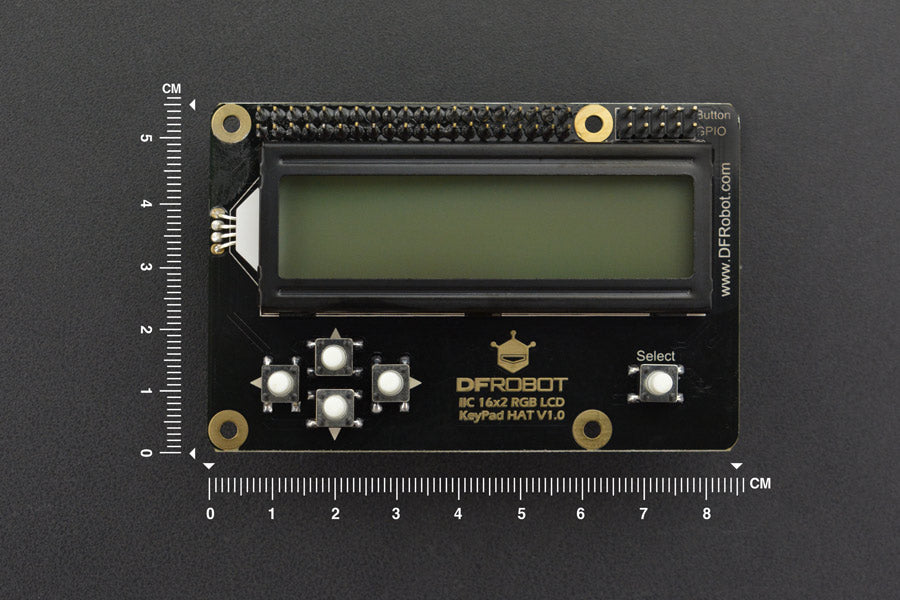

- Dimension: 85.0mm*56.0mm*26.8mm/3.35*2.20*1.06”
