Description

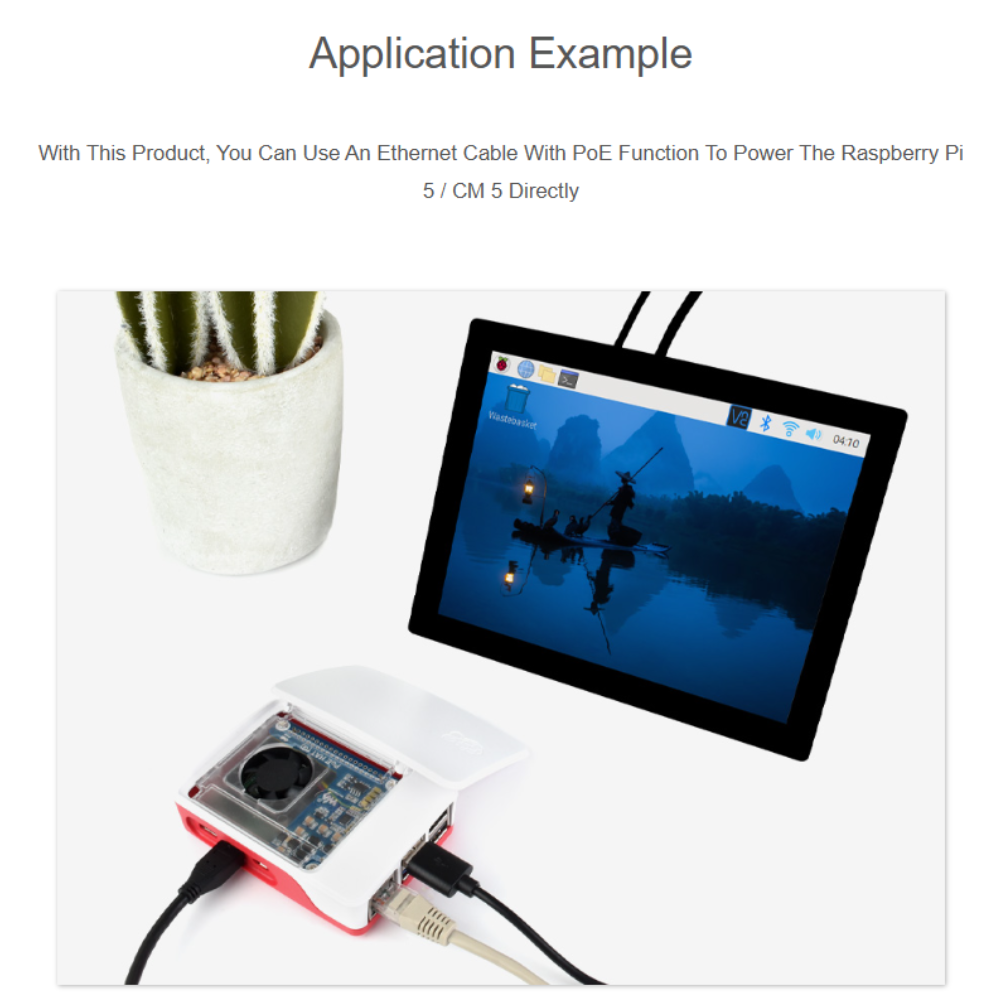

The PoE HAT (G) is an IEEE 802.3af/at-compliant PoE+ (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Does not support Raspberry Pi 4 and 3 series.
Features

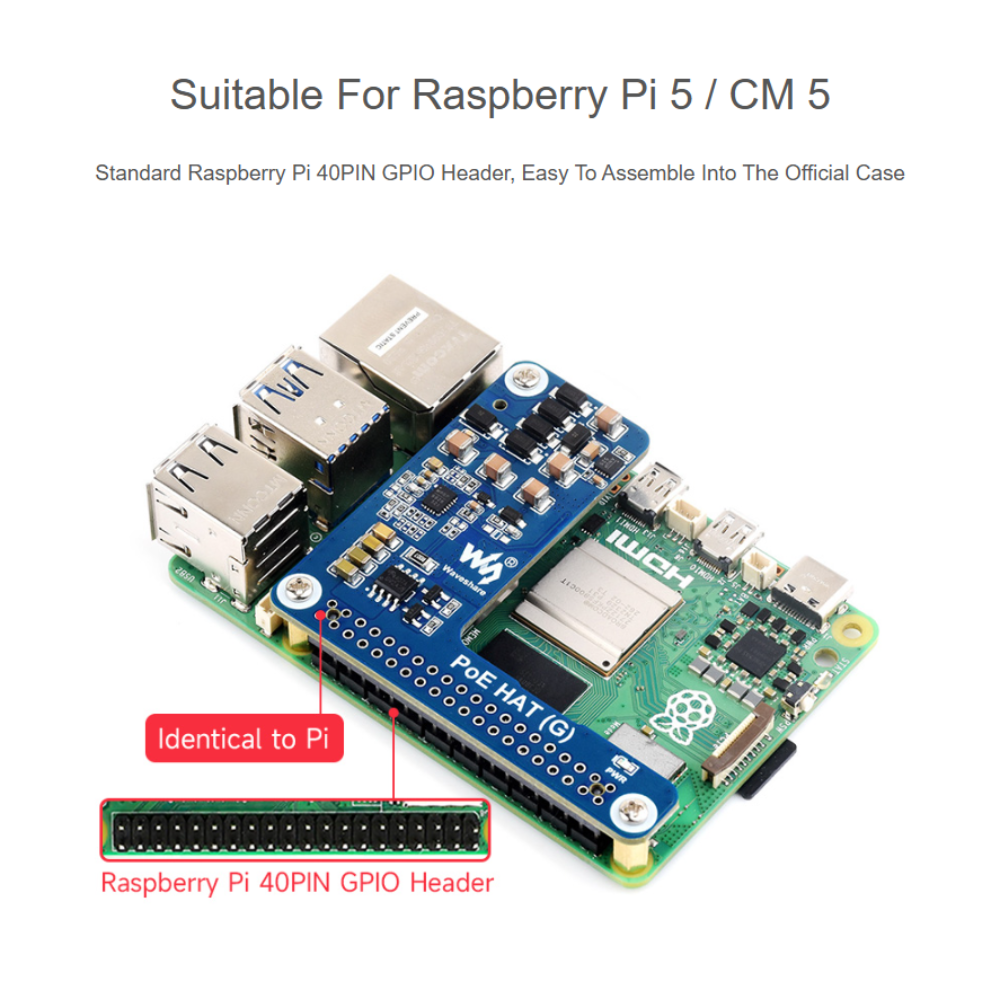

- Standard Raspberry Pi 40PIN GPIO header
- PoE / PoE+ capability，IEEE 802.3af/at-compliant
- Onboard original IC solution for more stable PoE power performance
- Adopts non-isolated switched-mode power supply (SMPS)
- Compact and easy to assemble

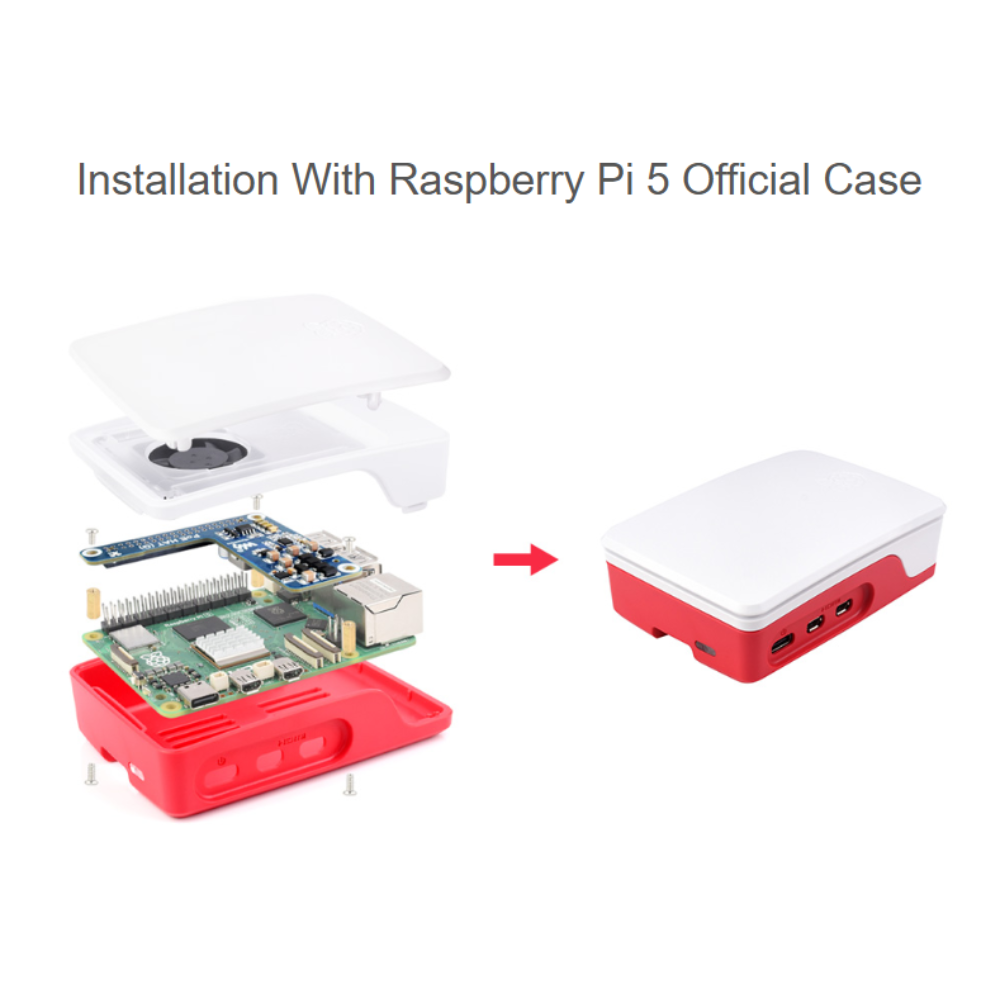

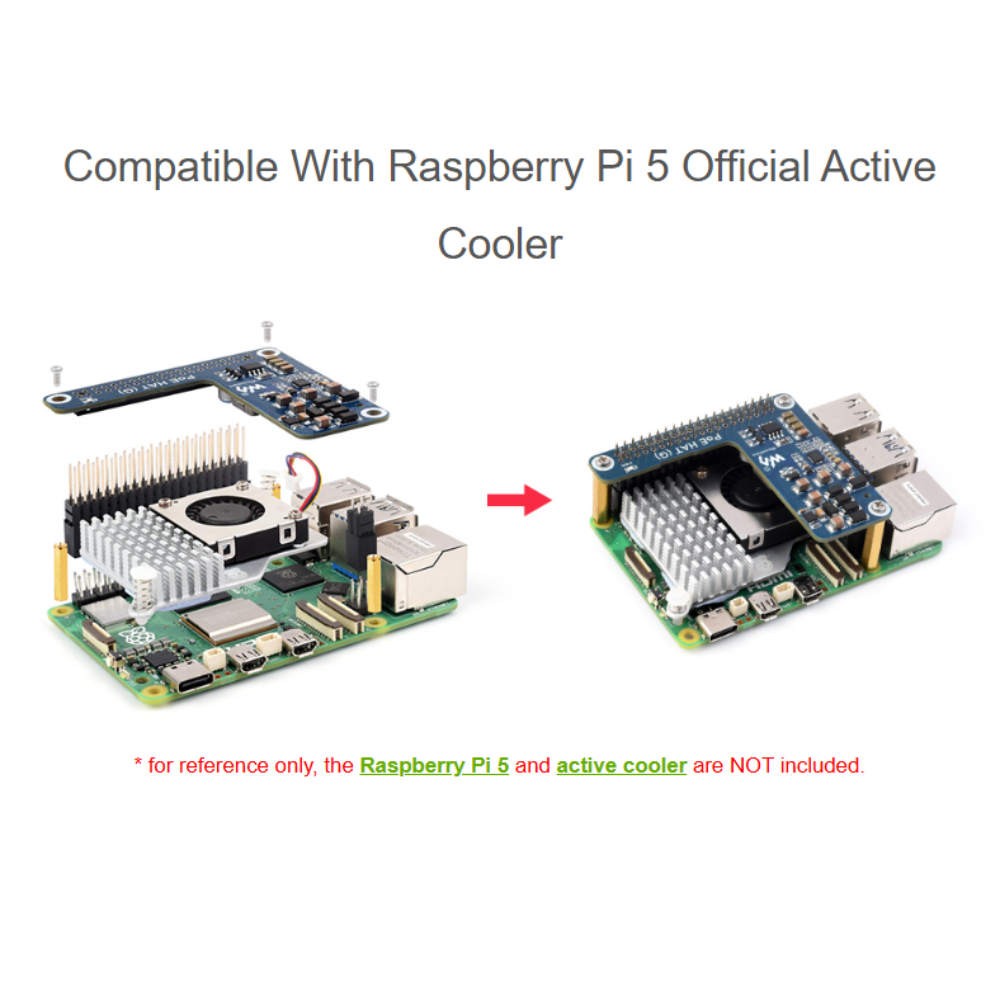

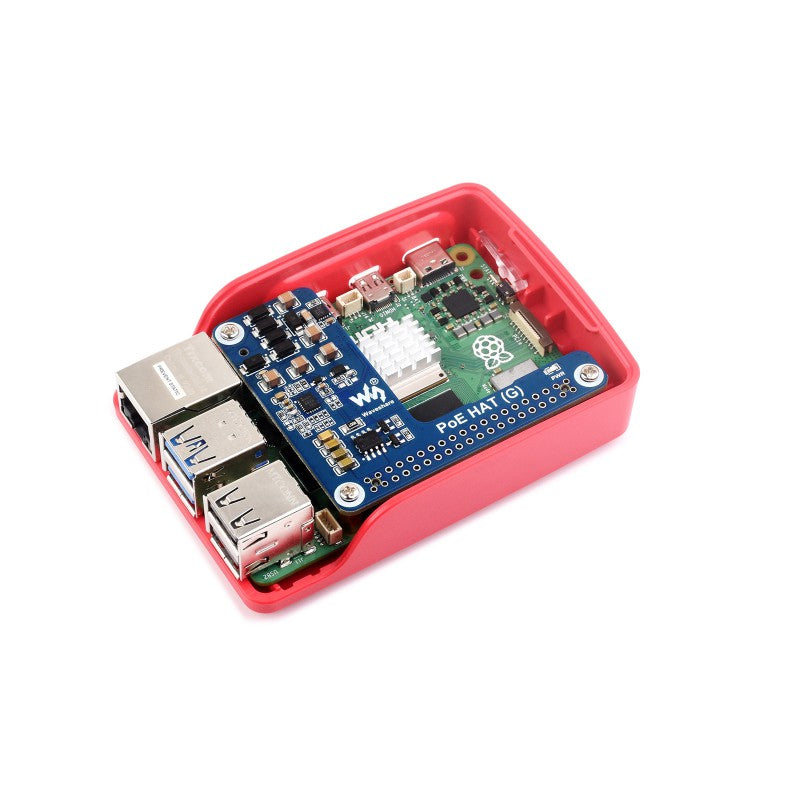

- Compatible with Raspberry Pi 5 Official Case and Active Cooler
Specification
- PoE power input: 38V ~ 57V DC in
- Power output: GPIO header: 5V 5A (MAX)
- Dimensions: 56.5 × 64.98mm
- Network standard: IEEE 802.3af/at PoE / PoE+

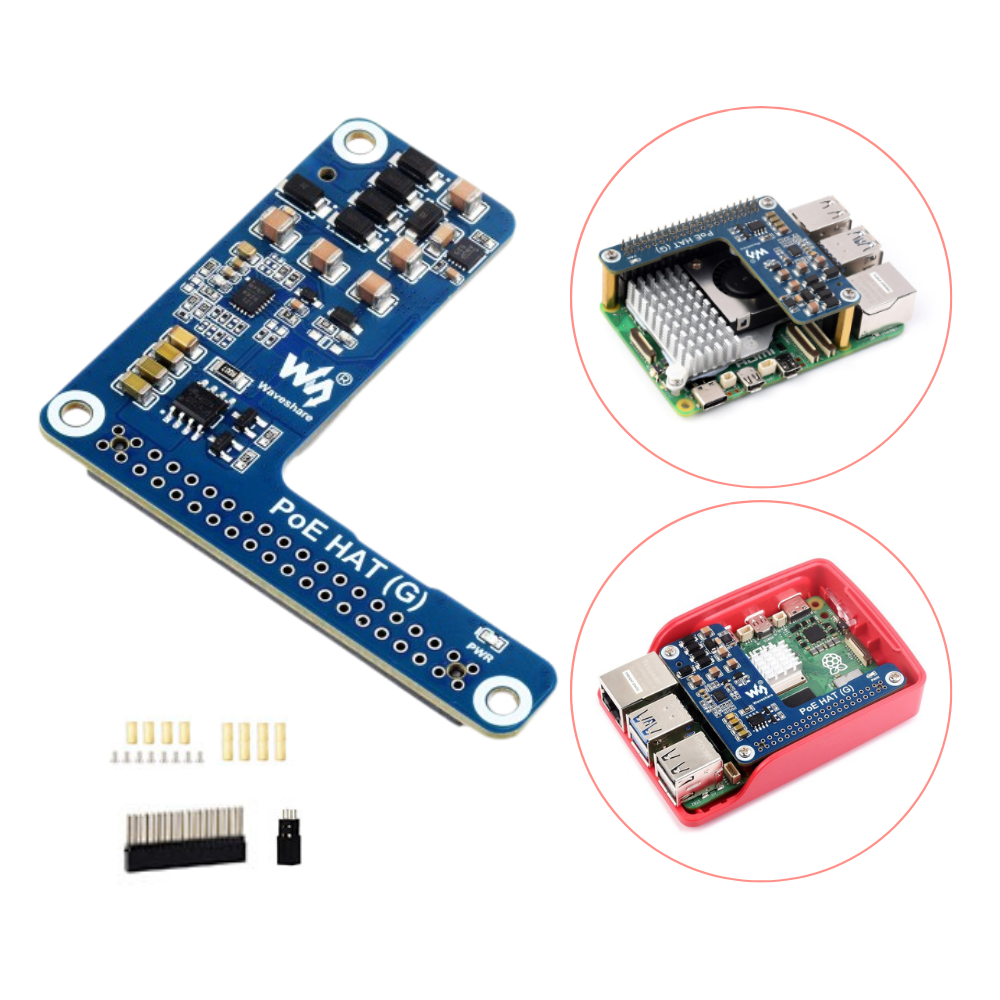

Packing List
- PoE HAT (G) x1
- 2*2 header x1
- 2*20 header x1
- Standoffs pack x1
